WSV-PA900B High quality trolly Ventilator Optional AIR COMPRESSOR

Service

Prev：WSV-PA700B2 High quality trolly Ventilator with Air Compressor

Next：WSB-9200D Full-digital Color Doppler Ultrasound Diagnostic System with 3.5MHZ convex probe

WSV-PA900B High quality trolly Ventilator Optional AIR COMPRESSOR

Price USD：

$6,299.00

$8,999.00

Description：

CE, ISO 13485 and Rohs certificates "Microprocessor controlled, Pneumatically driven electronically controlled " 10.4” TFT display screen for ventilation parameters Humidifier with temperature adjustment "With medical air compressor

Ship Way：

DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs

Item Code：

WSV-PA900B

Brand：

WISH MED

Sold：

4567

Contact WhatsApp

Specifications

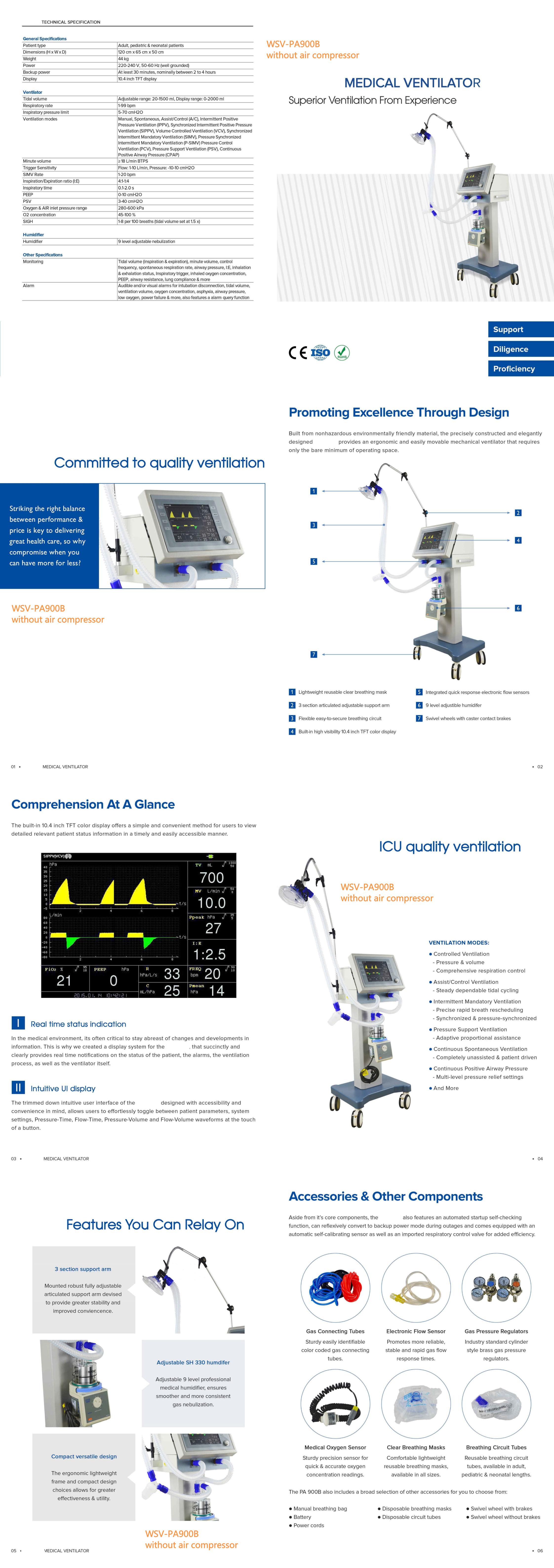

Brochures

Video show

WSV-PA900B High quality trolly Ventilator Optional AIR COMPRESSOR

Specifications

Type: Trolley

Main technical specifications:
Breathing Mode: A/C,SIPPV,VCV,IPPV,SIMV,PSIMV,CPAP,PCV,PEEP,SIGN,SPONT,MANUAL
Tidal Volume: 0~2000ml
I/E Ratio: 4:1 ~ 1:4
Respiration Frequency : 1~99 bpm;
IMV Frequency : 1~20 bpm
Lung compliance: ≤30 mL / kPa
Oxygen Concentration: 48%~100%
Maximum Minute ventilation: ≥18L / min

Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0 ~ 1.0 kPa
Ptr: -1.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa
Trigger Method: Pressure Trigger, Volume Trigger
Control Method: Pressure Control, Volume Control

"Ventilation monitoring: "
Tidal volume,Minute ventilation,Frequency, Airway Pressure, I/E, inspiration time, PEEP, FiO2, PCV,PSV

Waveform of time-airway Pressure and so on.

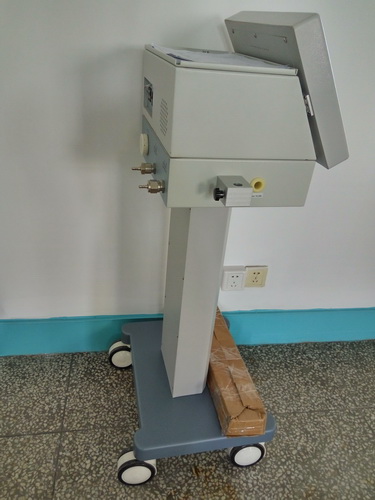

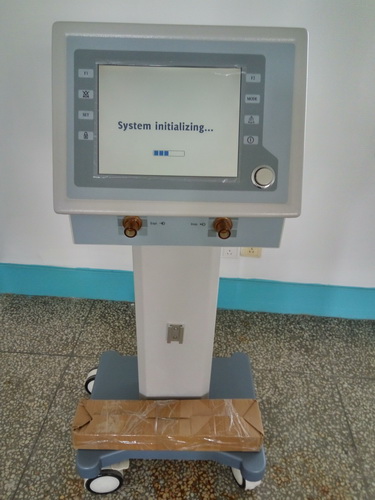

CCV-PA900B (3).jpg CCV-PA900B (4).jpg CCV-PA900B (1).jpg CCV-PA900B (2).jpg
