WSE-3303G 3 three channel 12 leads ECG EKG Monitor machine
Product Features :
1. Portable and delicate design, easy to operate
2. Accurate pulse pace identification function
3. High accuracy digital filter, automatic baseline adjustment
4. Working modes: Manual, Automatic, Arrythmia Analysis, Storage

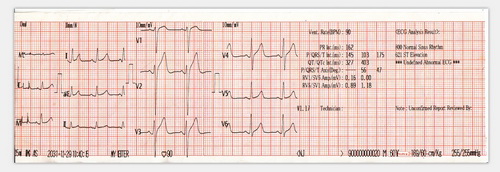

5. 80mm, three channel format recording, excellent automatic interpretation
6. 800x480 graphic 5 inch color LCD to simultaneously display ECG information
7. 250 patient cases storage and replay ( SD card is optional )
8. Detailed patient information record
9. Freeze function
10. Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery

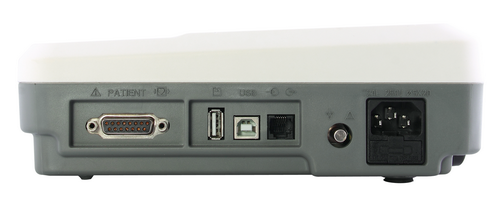

11. RS232 and USB interface, optional for USB storage, external laser printer printing,
PC ECG software functions.
Technical Specification
Lead
Standard 12 leads
Time constant
≥3.2s
Lead acquisition
12bit/1000Hz (synchronously 12 leads)
Frequency response
0.05～160Hz(-3db)
Work mode
Man / Auto/Analysis/Storage
Noise level
＜15μVp-p
Filter
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
Inter-channel Interference
≤0.5mm
CMMR
≥120dB (with AC FILTER)
Sensitivity
5，10，20, 40, Auto (mm/mV)
Input circuit
Floating; Protection circuit against
Defibrillator effect
Recording mode
1ch+, 3ch, 3ch+
Default Man. Mode is 3ch format
Default Auto. Mode is 3ch+ format
Input Impedance
≥50MΩ
Paper speed
6.25、12.5、25、50mm/s（±3％）
Input circuit current
≤0.05μA
Paper
80mm *20m high resolution thermal roll paper
Patient current leakage
＜10μA
Communication
RS232/ USB port
Calibrating voltage
1mV±2％
Power Supply
AC 110-230V(±10%),50/60Hz（±1Hz),60VA
DC Built-in rechargeable Ni-MH battery,12V (1500mAh)
Voltage tolerance
≥±500mV
Dimension/Weight
300mm×230mm×75mm / 2.8Kg
