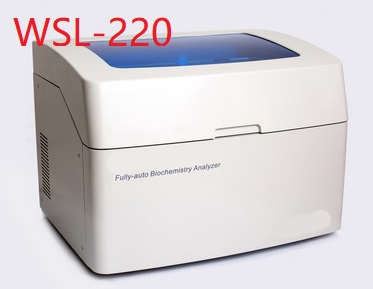

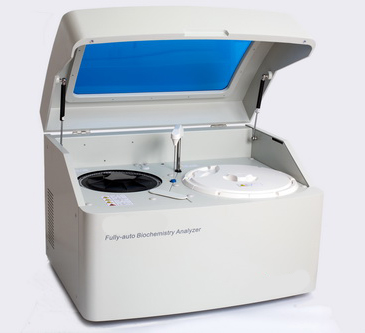

WSL-220 160 Tests clinical fully automated biochemistry chemistry analyser machine

We supply clinical fully automated biochemistry chemistry analyser machine with china factory price and high quality with CE, FDA, ISO certificate
Price USD：
$4,499.00
$5,999.00
Ship Way： DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code： WSL-220
Brand： WISH MED
Sold： 548
Contact WhatsApp
Specifications
Brochures
Video show

WSL-220 160 Tests clinical fully automated biochemistry chemistry analyser machine


Specifications

Type: Fully Automated

Sample Tests/Hour: 160 tests

Size: Tabletop Type


Features of clinical fully automated biochemistry chemistry analyser machine

160tests / hour
30 sample positions
60 reagent positions
81 reaction positions
Best economic choice to replace semi-auto

Technical Specifications
Performance of clinical fully automated biochemistry chemistry analyser machine
Type:           Discrete Automatic, Random Access
Principle:        Absorption Spectrometry, Turbidimetry
Throughput:      Constant 160tests/hour (without ISE)
Test method:     End-point, Fixed-time, Kinetic
                          Support dual reagents/double wavelength
Test sequence:    Run tests in strict accordance with sample sequence,
                             Insert emergency at any time

Optical System of clinical fully automated biochemistry chemistry analyser machine
Light Source:               Halogen-tungsten lamp, 12V/20W
More than 2000hrs service time
Spectrometric Method:       After spectrometric method
Wavelength:               8 wavelengths, selectable among 340-800nm
Absorption Range:          0-4.0Abs
Optical System:             Integrated full closed optical system
(system of clinical fully automated biochemistry chemistry analyser machine)

Reaction system of clinical fully automated biochemistry chemistry analyser machine
Reaction Tray:              81 positions for cuvettes
Reaction Volume:           Mini 150μl

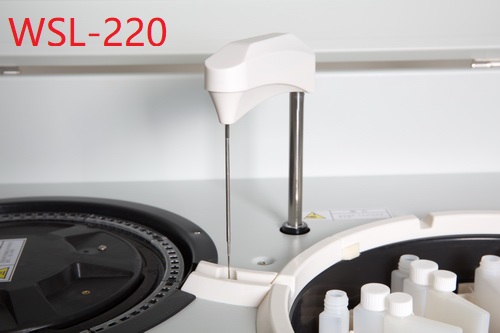

Sample system
Sample Tray:              30 positions
Sample Volume:           2-100μl, 0.1μl by step
Online Sample:            30 samples/ batch, unlimited batch input

Reagent System , Open reagent can match any reagent which is available in your native market.

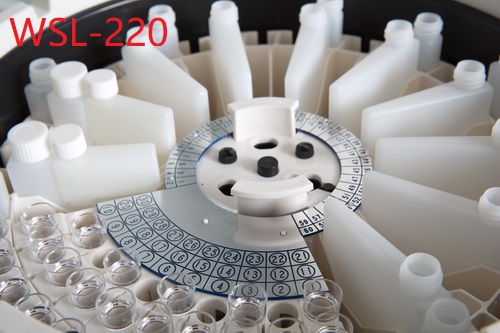

Reagent Tray:             60 positions, open system
Reagent Volume:          20-500μl, 1μl by step
Reagent Bottle:            Bottles with 15ml,20ml,30ml,50ml,70ml are available
dead volume ﹤1ml

Working Conditions of clinical fully automated biochemistry chemistry analyser machine
Water Consumption:        less than 3L/hour
Power Supply:             AC 220 ±22V   50HZ ±1HZ
Power:                   Max 200VA
Ambient Temperature:      10°C-30°C
Dimension(L*W*H):      78x58x55cm
Net Weight:            45KGS

Temperature Control System of clinical fully automated biochemistry chemistry analyser machine
Heating Mode:             Solid constant temperature closed direct heating
Equilibrium Time:           less than 3minutes
Reaction Temperature:       37±0.2°C
Temperature Fluctuation:   ± 0.2°C
Refrigeration system:      for option

Calibration and QC
Calibration Mode:          Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial
Automatically check calibration curve and select the calibration type with the best fitting
QC Type:   Real time QC, QC in one day, QC between days; QC chart: L-J, Cumulative, Twin Plot
QC Rules:                 Multi-rule; default: Westguard
Status Monitoring:         Real -time monitor the sample tray, reagent tray, reaction tray, reaction cup, lamp, purified water; Real-time display reaction tray humidity, reagent remain, reaction curve, calibration curve and QC chart.
Inspection and Judgment:   Reaction end point judgment, reaction linear range judgment, substrate depletion judgment, front belt detection,reaction limit inspection, reagent blank absorbance judgment
Operation and Print
Operation System:         Windows XP or Windows 7 Home Basic
Database:                SQL Server
Data Storage:             Automatic storage and backup, permanently preserve all kinds of data
Print Content:             Print content can be customized
Print Format:             Provide a variety of print format

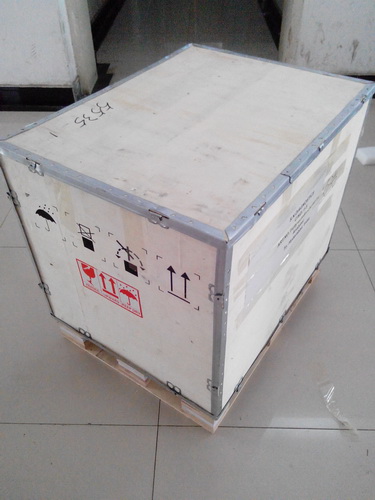

Package of clinical fully automated biochemistry chemistry analyser machine


Shipping Information:

G.W: 90kg

Packing Size: 0.85m,0.67m,0.79m
WISH CARE MEDICAL CATALOG
2023-Wish Care Medical Catalogue.pdf
8.68MBDownload
