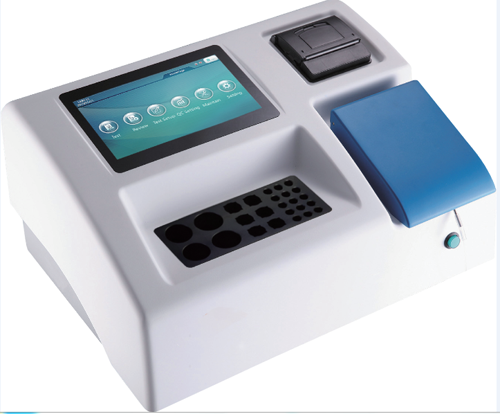

WSLD1 Semi-Auto Chemistry & Coagulation Analyzer

Specifications

Type: Semi Auto

Size: Tabletop Type

Parameter

Test item: Routine chemistry test and Coagulation(TT, PT, APTT).

Test method: 1 point end, 2 point end, Kinetics, Fixed-time, Turbidity, Clotting.
Test mode: Flow cell & cuvette.
Optics: 8 standard wavelengths: 340nm, 405nm, 450nm, 510nm, 546nm,
578nm, 600nm, 630nm. 2 more for optional.
Lamp house: Long-life tungsten halogen lamp, auto-sleep function.
Temperature: 25, 30, 37℃ and Room temperature, incubator unit 37℃.
Flow cell capacity & optical path: 32ul, 10mm.
Resolution: 0.0001 Abs.
Photometric range: 0.0000-3.3000 Abs.
Display: 7.0” TFT LCD with touch screen, 800*480 pixels.
Printer: Build-in thermal printer (30mm printer paper), support external printer.
CPU: ARM Cortex-A8, 800MHz; DDR3 SDRAM: 512MB; Flash: 256MB.
Memory: SD card: 8G;
Over 300 programs, 200000 results can be stored.
Interface: USB×4, ethernet port×1, RS232×1.
Operational environment: Temperature: 15℃~35℃, Humidity: 35%~85%.
Power requirement: Wide power supply AC 100-240V, 50/60 Hz.
Dimension: 400*300*180mm(L*W*H)
