Product Detail

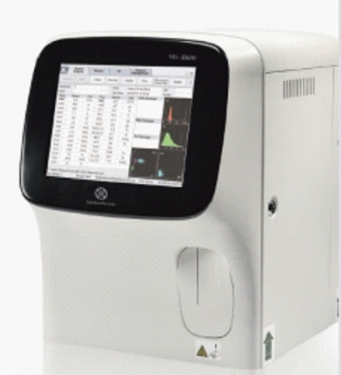

WSL650 5-parts automatic blood cell analyzer

Price USD
Ship Way DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code WSL650
Sold 2
Video show
23 reportable and 4 research parameters CBC
3 histograms (WBC,RBC,PLT) and 3

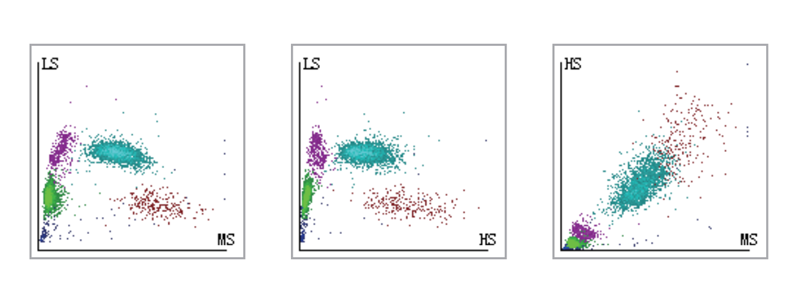

scattergrams for WBC differential and 1 dedicatedto Basophil measurement
User-friendly interface and easy operation withintuitive color touch screen
lnnovative technology incl.Tri-angle LaserScatter,Flow Cytometry, Chemical Dye
Open Tube Sampling Mode for whole blood,capillary,pre-diluted
Minimized sample volume to 15uL

Technical Specification
Principles    Data Storage Capacity
Tri-angle Laser Scatter, Flow Cytometry. Chemical Dye method for 5-part differential analysis and WBC counting    Up to 50,000 results including numeric and graphical data
Electrical Impedance method for RBC & PLT counting    Communication
Non-cyanide method for hemoglobin testing    LAN port support HL7 protocol
Parameters    Interface
23 Reportable Parameters CBC:    4 USB ports, 1 LAN connection
Whole Blood Mode: WBC. Lym#, Neu#, Mon#. Eos#. Bas#, Lym%. Neu%, Mon%, Eos%, Bas%, RBC. HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT. MPV. PDW. PCT.
4 Research Parameters: ALY#, LIC#, ALY%, LIC%
3 Histograms: WBC. RBC. PLT    Support Bi-directional LIS
3 Scattergrams for WBC Differential and 1 for Basophil measurement    External laser printer/ Inkjet printer, various printout formats and customized formats
Sample Volume    Operating Environment
Whole blood mode 15pL    Temperature: 1(W1-30»i
Capillary mode 15pL    Humidity: 20%~85%
Pre-diluted mode 20pL    Air pressure
Throughput    70kPa-106kPa
60 Samples / hour    Power requirement
Display    A.C100V-240V (50/60HZ), 5250VA
10.4' lntuitive color touch screen    Dimension
Multi- Language    360mm(L) x 470mm(W) x 430mm(H)
Chinese, English available
Spanish, Portuguese,Russia,French under development
Weight: 28KG

Product Feature & Specification
Throughput: lntelligent Flagging for Pathological Samples
60 Samples/hour
10.4 inch large TFT touch screen withuser-friendly software

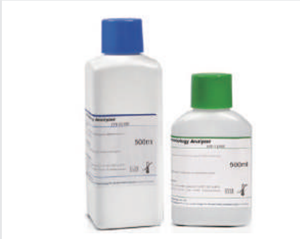

Reagent: DIL-C Diluent,LYC-1 Lyse , LYC-2 Lyse , CLE-P Cleanser
Result Performance :
Linearity          Precision(Cv%)
WBC: 0~300 x 10/L      ≤2.0%(4.0~15.0)
RBC:   0~8.5x 1012/L    ≤1.5%(3.5~6.0)
HGB:   0~250g/L      ≤1.5%(110~180)
HCT:   0~67%
PLT:    0~3000 x 10°/L     ≤4.0%(150~500)
MCV:                            ≤1.0%(70~120)fL



Automatic floating discriminators for WBC,RBC,PLT counting

Digital Sheath-Flow
Auto sample clot detection and unclotting function
Good reproducibility

Only 2 Reagent (Dilute,Lyse) for routine testing,1 Reagent (Cleanser)for regular maintenance

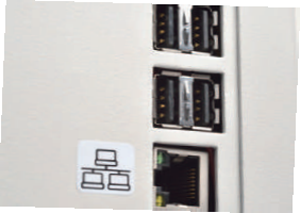

A LAN connectionand 4USB ports for
mOuse, keyboard,barcode scanner anddata transmission

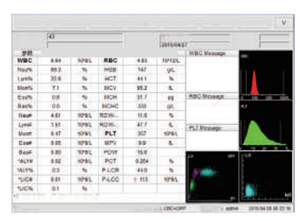

User-friendly interfaceand comprehensivedata management

The Real Dual-Opticalcounting channels enablethe DIFF and BASO to beanalyzed more preciselyand efficiently

Shipping Information:

G.W: 0kg

Packing Size: 0.63m,0.57m,0.6m

Unit: Piece

Special: No
