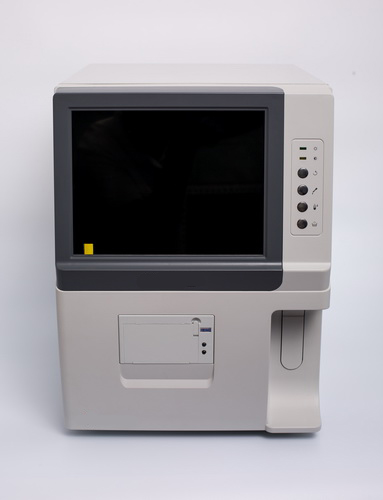

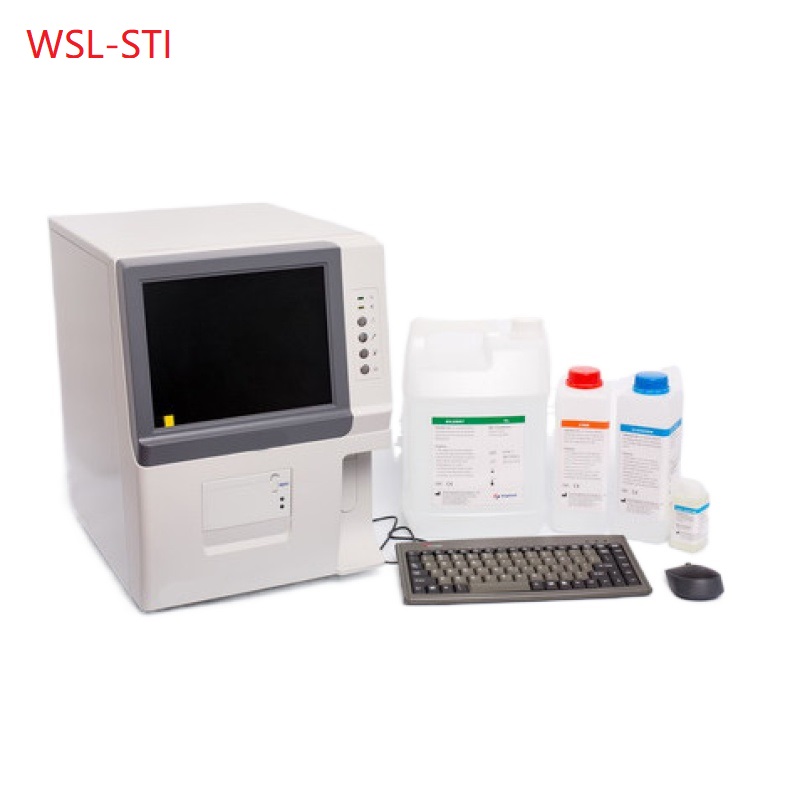

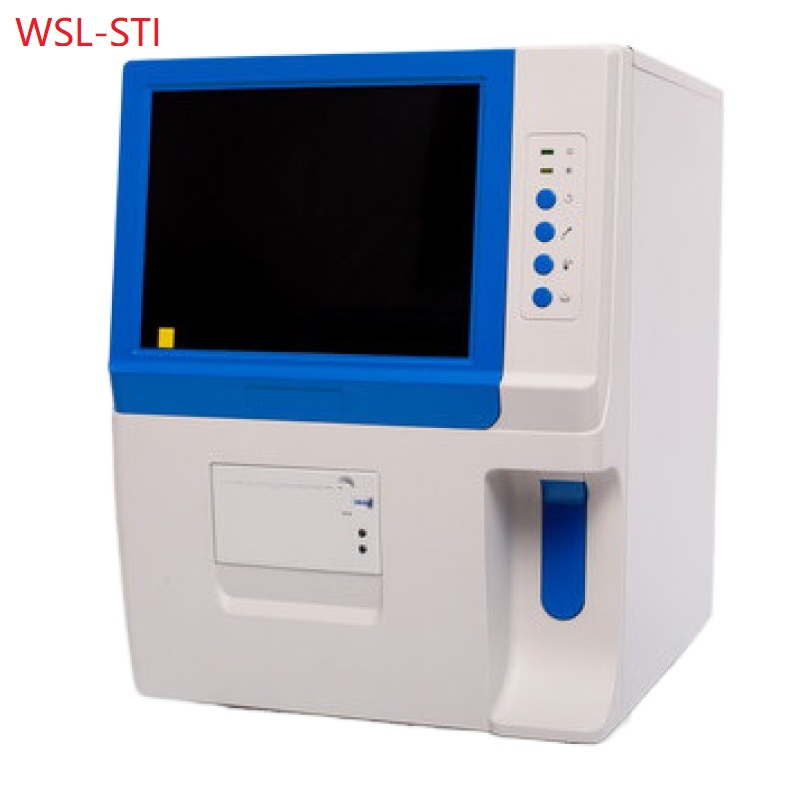

WSL-STI cell counter machine hematology analyzer

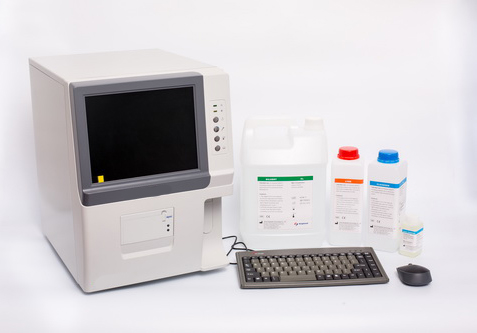

                ( cell counter machine with reagent )
3-part blood cell counter machine,
20 parameters + 3 histograms, 2 counting channels,
Up to 60 samples/hour,
10.4″ large color LCD,
Built-in printer,
USB port,
Stable, durable and economical

Features for cell counter machine
High Stability & Accuracy
Use the most advanced binuclear embedded digital circuit system, to make the analytical ability great and stable
2 counting channels of WBC and RBC, to make the test results more accurate and less cross- contamination
Use CPLD technology in data processing, to avoid the interference of electromagnetic signals

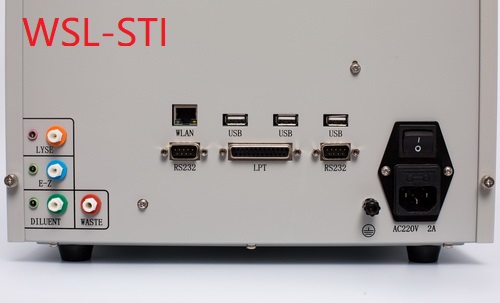

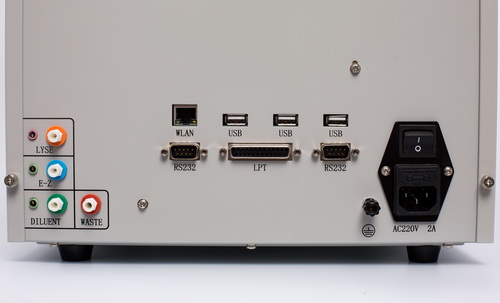

                            (cell counter machine backside)
Reliable Operation System for cell counter machine
Windows CE system
ARM intelligent micro-processing technology
Data analysis: intelligent pulse formulation technology
Classification: floating landmark technology
Module design, fast maintenance

User-friendly System for cell counter machine
10.4’’ large color LCD displays main menu and all parameters & color histograms in one screen
Brief operation instruction built-in software, easy for user to view
Separate module design, very simple mechanical structure, easy maintenance
Self check for hardware, alarm for error
Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional function

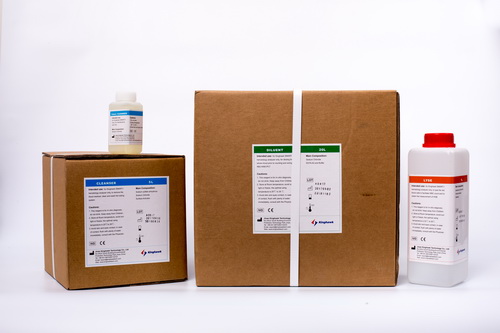

               (Reagent and Package for cell counter machine)

Technical Features for cell counter machine
2 counting mode: whole blood, pre-dilution blood
Sample pre-dilution: internal diluter, add 1ml diluent automatically by the needle, no need to add diluent manually to avoid deviation.
Calibration: automated or manual
QC: comprehensive QC program, forming and printing the histogram automatically
Block removal: Real time monitor, high ignition, soak, flush and back flush

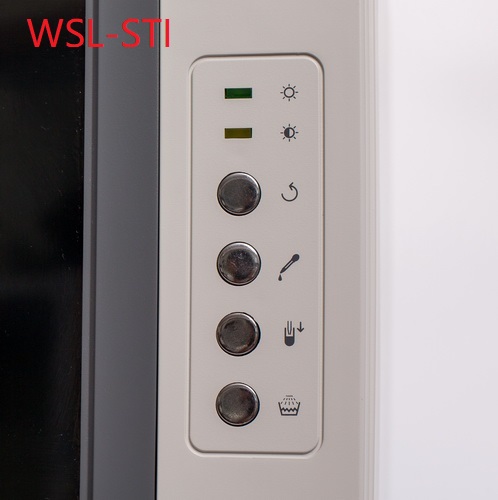

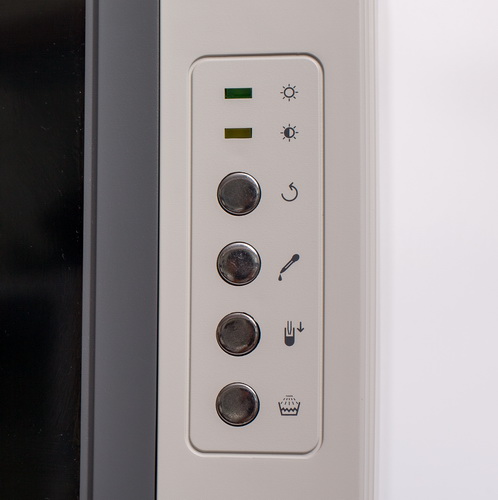

                     (cell counter machine side control)
Technical Specifications for cell counter machine
Principle:
Electrical impedance for counting and SFT method for hemoglobin
Parameters: WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT
Throughput:
Up to 60 samples per hour
Sample Volume:
Whole blood: 9μl, Pre-dilution blood: 20μl
Aperture Diameter:
WBC: 80μm   RBC: 50μm
Alarms:
Error messages
Display:
10.4’’ large color LCD
Storage:
10,000 sample results including histograms, available to increase storage by expanding memory card
Printout:
Built-in thermal printer, various print-out formats; external printer optional
Input:
Mouse and keyboard, connected by USB port
Interface:
USB x3, RS232 x2
Working Conditions:
Temperature: 15-35℃, Humidity: ≤80%
Atmospheric pressure: 70Kpa-106Kpa
Power supply: AC220V±22V, 50±1Hz
Dimension:
325x370x545mm(L*W*H)
Weight:
16Kg(net), 25Kg(gross)

(Wooden Package for cell counter machine to protect well during shipping)
