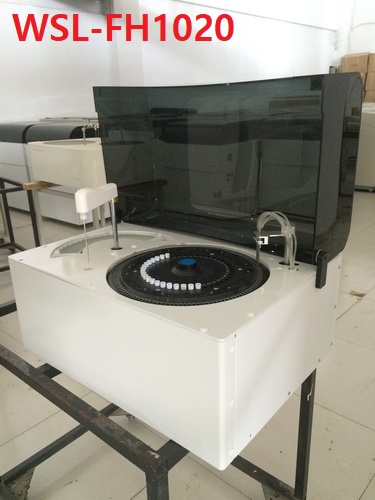

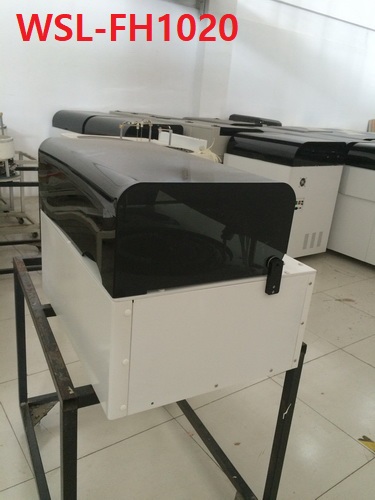

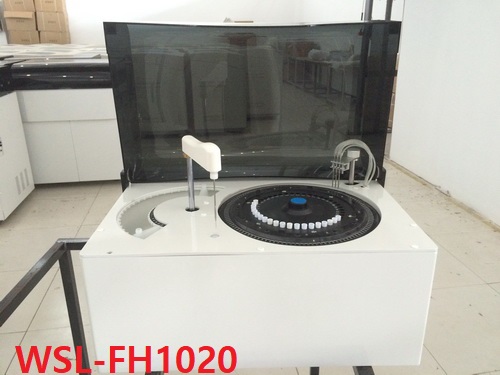

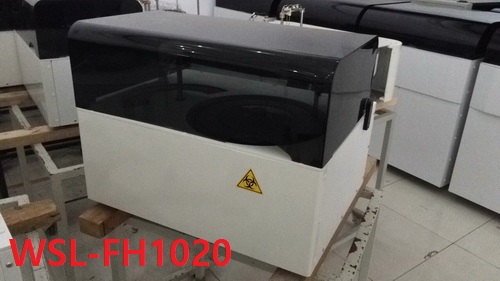

WSL-FH1020 fully automatic biochemistry analyzer machine
Specifications
Type: Fully Automated
Sample Tests/Hour: 200tests
Size: Table top Type
Fully automatic biochemistry analyzer machine Overall Performance, Equipment type Fully automatic discrete, STAT priority Analysis rate Constant speed 200T/H (without ISE) Test principle Colorimetry, turbidimetry Analysis method End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration Fully automatic biochemistry analyzer machine Sample System, Sample Tray 42 sample positions, random access of all samples Sample Volume 2-50ul, 0.1ul increment Sample probe Liquid level detection, the remaining detection, collision protection etc. Sample Containers Sample cups, Micro tube, Original blood-collection tube, etc. fully automatic biochemistry analyzer machine Reagent System Reagent Tray 25 reagent positions Reagent Volume R1:25-300ul, R2:10-150ul, 0.1ul increment Reagent Probe Liquid level detection, the remaining detection, collision protection etc. Reagent Refrigeration 4-15℃, independent power supply, 24-hour non-stop refrigeration fully automatic biochemistry analyzer machine Reaction System Reaction Tray Rotating tray, 120 cuvettes Cuvette Reusable high quality cuvette, Optical diameter 6mm Reaction Volume 180-500ul Incubation system Bi-directional liquid-air device Temperature 37℃±0.1℃ with real-time display fully automatic biochemistry analyzer machine Optical System Light source 12V35W halogen lamps, over 2000 hours Photoelectron road after spectrophotometry Wavelength 340,405,450,510,546,578,630,700nm Absorbance range 0-3.500Abs Resolution 0.0001Abs fully automatic biochemistry analyzer machine Operating System PC operating system Windows XP or above Analysis control software English version graphical operating software Report printing Report formats support the user-defined mode, QC and state information etc. System connection RS-232 fully automatic biochemistry analyzer machine Working Conditions Power supply AC 220V±22V, 50Hz±1Hz, power 1.5KVA Ambient Temperature 15-30 ℃ Humidity 35-80% Water consumption 5L/Hour Dimension Bench top: 750mm*520mm*600mm Weight 45KG
Shipping Information: G.W: 68kg
Packing Size: 0.8m,0.6m,0.7m
