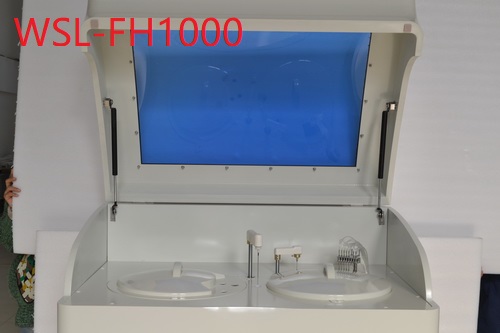

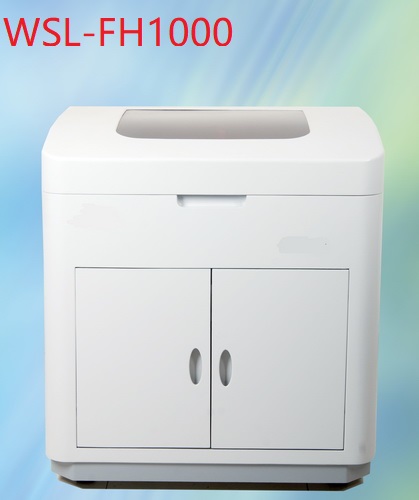

WSL-FH1000 240 Test autoanalyzer for blood chemistry

We supply autoanalyzer for blood chemistry with china factory price and high quality with CE, FDA, ISO certificate, Fast shipping, Long warranty, Local technical support, local customers good reviews
Price USD：
$6,169.00
$7,999.00
Ship Way： DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code： WSL-FH1000
Brand： WISH MED
Sold： 48
Contact WhatsApp
Specifications
Brochures
Video show

WSL-FH1000 240 Test autoanalyzer for blood chemistry


Specifications

Type: Fully Automated

Sample Tests/Hour: 240 tests

Size: Floor Standing Type


Overall Performance for autoanalyzer for blood chemistry

Equipment type        Fully automatic discrete, STAT priority
Analysis rate          Constant speed 240T/H
Test principle          Colorimetry, turbidimetry
Analysis method       End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration
         (autoanalyzer for blood chemistry Operation System)

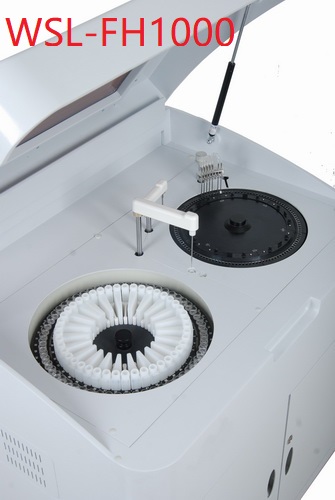

Sample System for autoanalyzer for blood chemistry
Sample Tray          60 sample positions, random access of all samples
Sample Volume       2-50ul, 0.1ul increment
Sample probe         Liquid level detection, the remaining detection, collision protection etc.
Sample Containers    Sample cups, Micro tube, Original blood-collection tube, etc.

Reagent System for autoanalyzer for blood chemistry
Reagent Tray         45 reagent positions
Reagent Volume      R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe        Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration    4-15℃, independent power supply, 24-hour non-stop refrigeration

Reaction System for autoanalyzer for blood chemistry
Reaction Tray        Rotating tray, 120 cuvettes
Cuvette             Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume     180-500ul
Incubation system    Bi-directional liquid-air device
Temperature         37℃±0.1℃ with real-time display

Optical System for autoanalyzer for blood chemistry
Light source           12V35W halogen lamps, over 2000 hours
Photoelectron road     after spectrophotometry
Wavelength           340,405,450,510,546,578,630,700nm
Absorbance range     0-3.500Abs
Resolution            0.0001Abs

Operating System for autoanalyzer for blood chemistry
PC operating system       Windows XP or above
Analysis control software      English version graphical operating software
Report printing            Report formats support the user-defined mode, QC and state information etc.
System connection        RS-232

Working Conditions for autoanalyzer for blood chemistry
Power supply             AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature     15-30 ℃
Humidity                 35-80%
Water consumption        6L/Hour
Dimension                Bench top: 850mm*650mm*690mm
Weight                   80KG


Shipping Information:

G.W:68kg

Packing Size: 0.8m,0.6m,0.7m
