Guangzhou Wish Care Medical Equipment CO., LTD.

Gradient Module

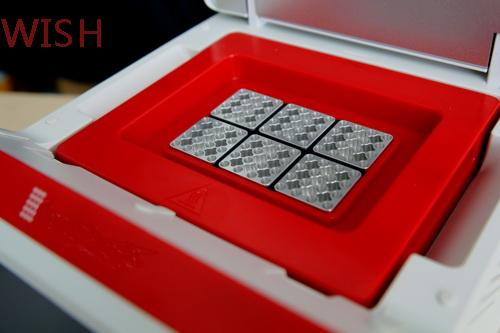

Block	616wells0.2 individual module, six different annealing temperatures could be set for each zone
Tube Type	0.2ml PCR tubes, 8/12 Strips, 96 wells PCR plate
Peltier Technology	New Generation Peltier Technology
Display	7” Color Touch Screen, graphically display the realtime protocols and running status
Language	Full English
Communications Ports	2 USB and 1 LAN
Venting System	Front air in and back air out,two cyclers can be placed side by side

Gradient
Gradient Accuracy	≤±0.15℃
Zone Uniformity	≤±0.20℃
Gradient Range	0℃～105℃
Temperature Differential Range	less than 25℃ between two adjacent zones
Gradient Capability	6-zone temperature can be set independently. better than traditional gradient function

Heat Lid
Height of Heat Lid	Steplessly Adjustable Lid, accommodates all kinds of PCR tubes, strips and plates
Lid Feature	Innovative "TOP-OPEN" technology, protection from over- pressure
Heat Lid Temperature Range	30℃～112℃
Auto Shut-Off	Yes

Software
Max. No. of programs	Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive
Max. Step	30 Steps, multiple nesting cycle available
Max. Cycle	100 Typical cycles, max. 60,000 nesting cycles
Time Increment/Decrement	1-120 sec, available for Long PCR & Touchdown PCR
Temperature Increment/Decrement	0.1-10.0℃, available for touchdown PCR
Auto Pause / Auto Restart	Yes
Multi-user log in	With password-based authentication prevents from view, copy and alteration of protocols
Tm calculator	Automatically calculate the melting and annealing temperature with two primer sequences
Hold at 4℃	Yes, an Infinite incubation time at low temperature for overnight working
Program wizard	Yes, create PCR protocols with only a few clicks
Running Report	Yes, Provide precise information for the whole experiment
PC Connection	Yes,PC remote control to manage multl units across the newwork
