WSL-96PLUS Thermal Cycler PCR

Price USD：
$3,149.00
$3,999.00
Description： uses customized Marlow(US) peltier. Its max. Ramping rate is 6 ℃/s and cycle times is more than 1,000,000. The product combines a variety of advanced technologies: WINCE system; color touch screen; 6 independently controlled temperature zones;
Ship Way： DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code： WSL-96PLUS
Brand： WISH MED
Sold： 15941
Contact WhatsApp
Specifications
Brochures
Video show

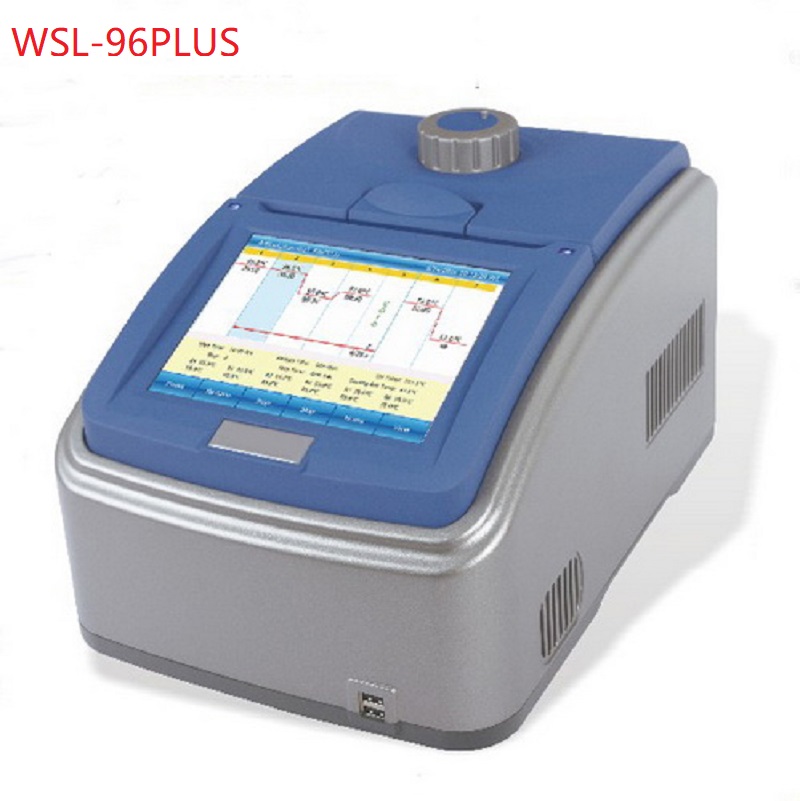

WSL-96PLUS Thermal Cycler PCR


Specifications
Introduce:
uses customized Marlow(US) peltier. Its max. Ramping rate is 6 ℃/s and cycle times is more than 1,000,000. The product combines a variety of advanced technologies: WINCE system; color touch screen; 6 independently controlled temperature zones; PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR’s excellent performance and meet higher experiment’s need.

Features：

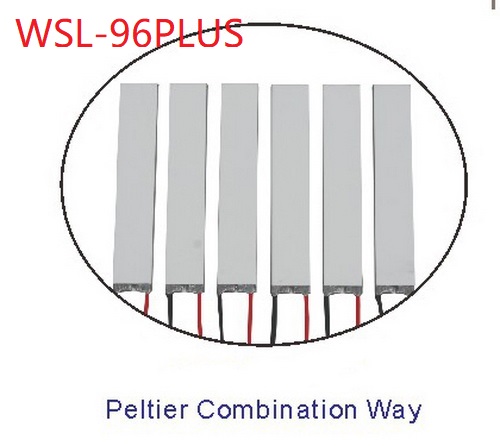

1. Six pieces of long service life Peltier heating units and can independently control 6 temperature zones;

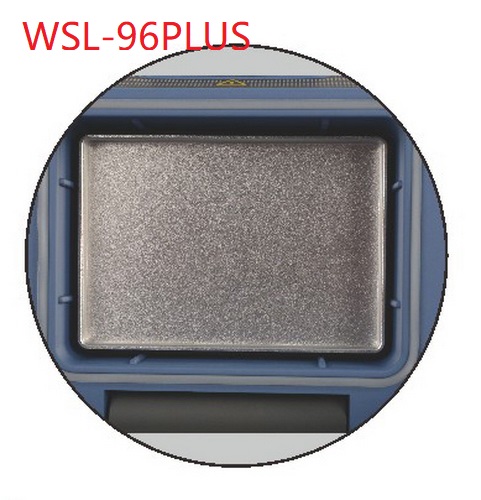

2. Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
3. High heating and cooling rate, max. Ramping rate 6 ℃/s, can save your precious time;

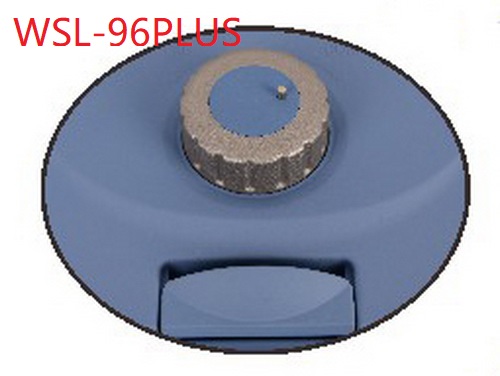

4. Stepless adjustable hot lid, fit tubes of different heights to avoid tube melt and evaporation.
5. Windows interface, 8” ( 800×600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
6. Built-in 11 standard program file template, can quickly edit the required files.
7. Folder management, user can build directory.
8. The running program and left time can be displayed in real time, allow to edit file when program is running.
9. One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
10. Internal flash memory for 10000 typical PCR files in free configurable folders.
11. Hot lid temperature and hot lid work mode can be set to meet different experiment’s need.
12. Automatic restart after power failure. When power is restored it can continue to run unfinished program.
13. GLP report records every step to provide accurate data support for experiment result analysis.
14. User Login Management, three-tier permission, password protection function to ensure data security.
15. Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
16. Support USB and LAN to update software.
17. One computer can control many sets of PCR via network connection.
18. Min type Bluetooth printer as an option, easily record information.
19. Support email-alert function when experiment is over.

Parameters:

Capacity

96×0.2ml（6 independent 16 well block）

Temperature Range

4～100℃

MAX. Heating Rate

6℃/s

MAX. Cooling Rate

4℃/s

Uniformity

≤±0.3℃

Accuracy

≤±0.2℃

Display Resolution

0.1℃

Temperature Control

Block\Tube

Ramping Rate Adjustable

0.1～6℃

Gradient Temp. Range

30～100℃

Gradient Spread

Temperature difference of adjacent temperature zone is 0.1-5℃. 6 temperature zones in total

Hot Lid Temperature

30～110℃

Hot Lid Height Adjustable

Stepless Adjustable

Number of Programs

10000 +(USB FLASH)

Max. No. of Step

30

Max. No. of Cycle

100

Time Increment/Decrement

1 Sec ～ 600 Sec

Temp. Increment/Decrement

0.1～10.0℃

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4℃

Forever

Language

English

Print

Yes

LAN to computer

Yes

LCD

8 inch，800×600 pels,

Communication

USB2.0 , LAN

Dimensions

390mm×270mm×255mm (L×W×H)

Weight

9kg

Power Supply

85～264VAC , 47～63Hz , 600 W


WISH MED Product Catalog

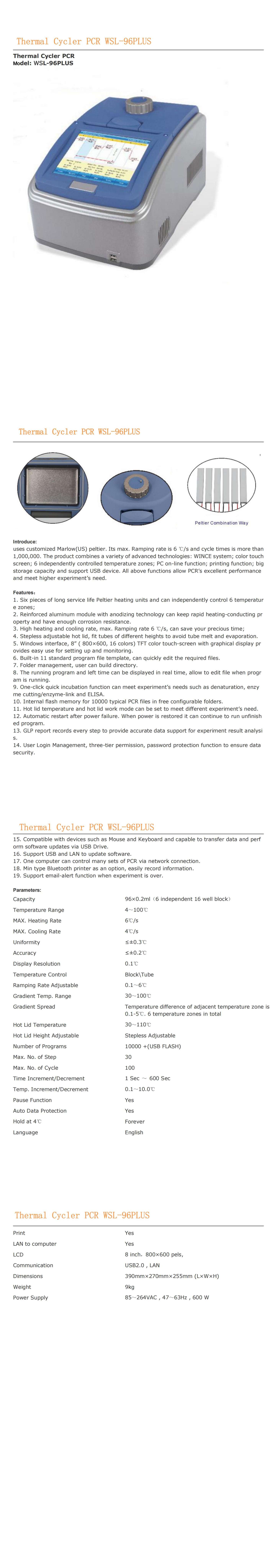

Thermal Cycler PCR WSL-96PLUS_00.jpg
