WSL-420 300tests blood chemistry analyzer machine

300tests blood chemistry analyzer machine We supply blood chemistry analyzer machine with china factory price and high quality with CE, FDA, ISO certificate,
Price USD：
$9,979.00
$12,999.00
Ship Way： DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code： WSL-420
Brand： WISH MED
Sold： 548
Contact WhatsApp
Specifications
Brochures
Video show

WSL-420 300tests blood chemistry analyzer machine


Specifications

Type: Fully Automated

Sample Tests/Hour: 300Tests

Size: Floor Standing Type


Features of blood chemistry analyzer machine

300tests /hour
24hours refrigeration
Auto washing
80 reagent positions
80 sample positions
81 reaction positions

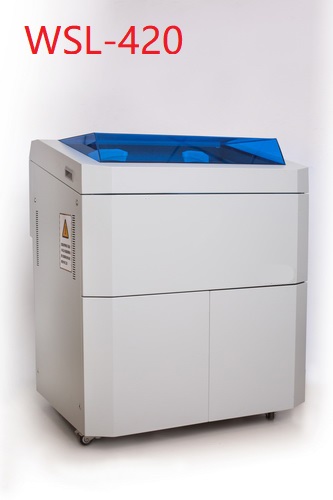

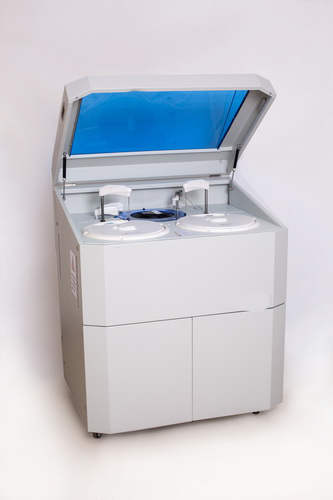

(blood chemistry analyzer machine Full picture)

Technical Specifications
Performance for blood chemistry analyzer machine
Type:               Discrete Automatic, Random Access
Principle:           Absorption Spectrometry, Turbidimetry
Throughput:         Constant 300tests/hour (without ISE), up to 420tests/hour
Test method:        End-point, Fixed-time(two point), kinetic,
support double reagent and double wavelength
Test sequence:      Run tests in strict accordance with sample sequence,
                   Insert emergency at any time
Probe performance:   Liquid level detection, all-round anti-collision protection and inventory checking,
have automatic stop and alarm prompt for an obstacle; special cleaning solution
to prevent cross-contamination.
Probe cleaning:      Automatic washing for both interior and exterior

Optical System
Light source:             Halogen-tungsten lamp, 12V/20W
More than 2000hrs service time
Spectrometric method:     After spectrometric method
Wavelength:             8 -12wavelengths, selectable among 340-900nm
Absorption range:         0-4.0Abs
Optical system:            Integrated full closed optical system

Reaction system
Reaction tray:             81 positions, cuvettes reusable
Reaction volume:          Mini 150μl

Sample system
Sample tray:             80 positions, independent tray
Sample volume:          2-100μl, 0.1μl by step,
Online sample:           80 samples/ batch, unlimited batch input

Reagent System
Reaction tray:          80 positions, open system, independent tray
Reagent volume:       20-500μl, 1μl by step
Reagent open system, close system for option
Working Conditions
Water consumption:     Less than 10L/hour
Power supply:          AC 220 ±22V   50HZ ±1HZ
Power:                Max 550VA
Ambient temperature:   15°C-30°C
Dimension (L*W*H):   92x73x113cm
Net weight:          120KGs

Temperature Control System for blood chemistry analyzer machine
Refrigeration system:        Water -medium uniform cooling technology
Heating time:               Less than 3minutes
Reagent tray temperature:    2-10°C
Reaction temperature:       37±0.1°C
Temperature fluctuation:   ± 0.1°C
Refrigeration system:     24 hours cooling for reagent tray, temperature: 2-10°C

Calibration and QC
Calibration mode:         Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial
                       Automatically check calibration curve and fitting the best calibration curve
QC type:                Multi-type
QC rules:                Multi-rule; default: Westguard
Status monitoring:        Real -time monitor the sample tray, reagent tray, reaction tray; Real-time display reaction temperature, reagent remain, reaction curve, calibration curve and QC chart.
Inspection and judgment:   Reaction end point judgment, reaction linear range judgment, substrate depletion judgment, reagent blank absorbance judgment
Operation and Print
Operation system:        Windows XP or Windows 7 Home
Database:               SQL Server
Data storage:            Automatic storage and backup, permanently preserve all kinds of data
Print content:            Print content can be customized

Print format:            Provide a variety of print format


Shipping Information:

G.W: 220kg

Packing Size:100*88*125
