Product Detail

WSI-YP970 Medical Infant Incubator

Price USD
Description Air mode and baby mode servo-controlled by micro-computer; Humidity concentration control system; Oxygen concentration control system;
Ship Way DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code WSI-YP970
Brand WISH
Sold 650
Video show

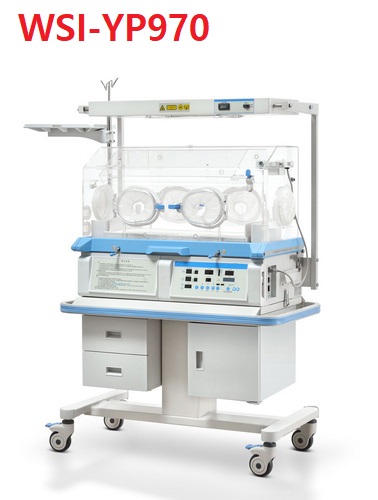

WSI-YP970 Medical Infant Incubator

Product Introduction
Air mode and baby mode servo-controlled by micro-computer;
Humidity concentration control system;
Oxygen concentration control system;
Two control modes: Air mode and baby mode controlled by micro-computer;
Humidity control system;
Oxygen concentration control system (for YP-970);
Set temperature, air temperature, baby temperature, humidity and oxygen are displayed separately;
>37℃temperature set function;
Failure alarm indication;
Embedded integrated sensor box;
Integrated water reservoir in the shape of drawer;
Double wall hood, automatic air circulation device;
Inclination of bassinet is adjustable;
RS-232 connector;
DC motor.

Main Parameters

Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 1300VA

Mode of control: Air mode and baby mode controlled by micro-computer

Air temperature control range: 25℃-37℃(override mode 37-39℃)

Baby temperature control range: 34-37℃(override mode 37-38℃)

Accuracy of skin temperature sensor: ±0.2℃

The temperature difference between incubator temperature and average incubator   temperature(under steady temperature condition): ≤0.5℃

Temperature uniformity: ≤0.8℃(mattress is on the horizontal position)

Inclination of the bassinet: ±8°

Noise inside hood:≤45dB(A)

Failure alarm: over-temperature alarm, temperature deviation alarm, sensor alarm, Motor Fan Failed Alarm, Power failure Alarm, sensor box position alarm, tank position alarm, system alarm and so on.

Humidity display range: 0%RH~99%RH

Humidity control range: 0%RH~90%RH

Accuracy of humidity display: ±5%RH(environment temperature is 25℃, environment humidity is 45%RH±5%RH)

Indication range of oxygen concentration: 0%~99%

Control range of oxygen concentration: 20%~60%

Accuracy of oxygen display concentration: ±2%(oxygen concentration sets ≤25%)

±3%(oxygen concentration sets >25%)

Accuracy of oxygen control concentration: ±4%

Range of weigh: 100-8000g(weighing system)

Resolution for weight indication: 1g(weighing system)

Accuracy of weigh: ±1%(weighing system)

Environmental temperature:

Operating range: 20 ℃~30℃

(Set temperature should be higher 3℃ than the environment temperature)

Ambient air movement rate: <0.3m/s

Product Packaging:

Package: each unit is packed into two cartons

Dimension (Main body): 1110mm x 710mm x 888mm

(Cabinet): 1029mm x 697mm x 826mm

Gross Weight (Main body): 70Kg

(Cabinet): 80Kg

Basic Configuration

Baby compartment, main body, vertical height adjustment stand (VHA stand), the controller, I.V. Pole and shelf.
