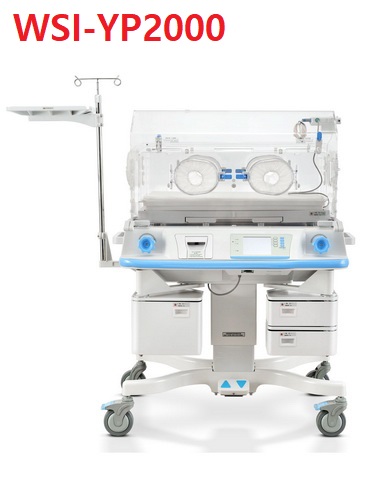

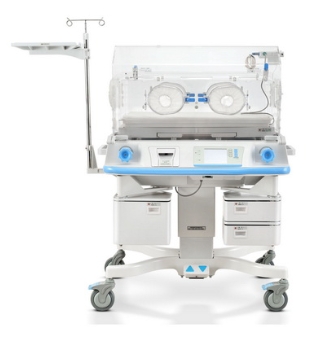

WSI-YP2000 LCD display Infant Incubator with X-ray cassette

Product Introduction
Two control modes: Air mode and baby mode controlled by micro-computer;

The information can be stored, consulted and indicated by the LCD display screen;

Humidity and oxygen concentration display and servo control;

>37℃temperature set function;

Double wall hood, air circulation system in the way of air outlet from front and back;

X-ray cassette under the bassinet;

Embedded integrated sensor module, integrated water reservoir in the shape of drawer;

Inclination of bassinet is adjustable;

The height of whole unit can be adjusted;

Failure alarm indication;

RS-232 connector;

DC motor.

Basic Configuration

Baby compartment, main body, vertical height adjustment stand (VHA stand), the controller, I.V. Pole and shelf.

Main Parameters

Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 1300VA

Mode of control: Air mode and baby mode controlled by micro-computer

Air temperature control range: 25℃-37℃(override mode 37-39℃）

Baby temperature control range: 34-37℃(override mode 37-38℃)

Accuracy of skin temperature sensor: ±0.2℃

The temperature difference between incubator temperature and average incubator   temperature(under steady temperature condition): ≤0.5℃

Temperature uniformity: ≤0.8℃(mattress is on the horizontal position)

Inclination of the bassinet: ±8°

Noise inside hood:≤45dB(A)

Failure alarm: over-temperature alarm, temperature deviation alarm, sensor alarm, Motor Fan Failed Alarm, Power failure Alarm, sensor box position alarm, tank position alarm, system alarm and so on.

Humidity display range: 0%RH~99%RH

Humidity control range: 0%RH~90%RH

Accuracy of humidity display: ±5%RH(environment temperature is 25℃, environment humidity is 45%RH±5%RH)

Indication range of oxygen concentration: 0%~99%

Control range of oxygen concentration: 20%~60%

Accuracy of oxygen display concentration: ±2%(oxygen concentration sets ≤25%)

±3%(oxygen concentration sets >25%)

Accuracy of oxygen control concentration: ±4%

Range of weigh: 100-8000g(weighing system)

Resolution for weight indication: 1g(weighing system)

Accuracy of weigh: ±1%(weighing system)

Environmental temperature:

Operating range: 20 ℃~30℃

(Set temperature should be higher 3℃ than the environment temperature)

Ambient air movement rate: <0.3m/s

Product Packaging:

Package: each unit is packed into two cartons

Dimension (Main body): 1110mm x 710mm x 888mm

(Cabinet): 1029mm x 697mm x 826mm

Gross Weight (Main body): 70Kg

(Cabinet): 80Kg
