Air temp.servo-controlled by computer; Separate setting temp.and real temp.display windows; Five self-check alarms.

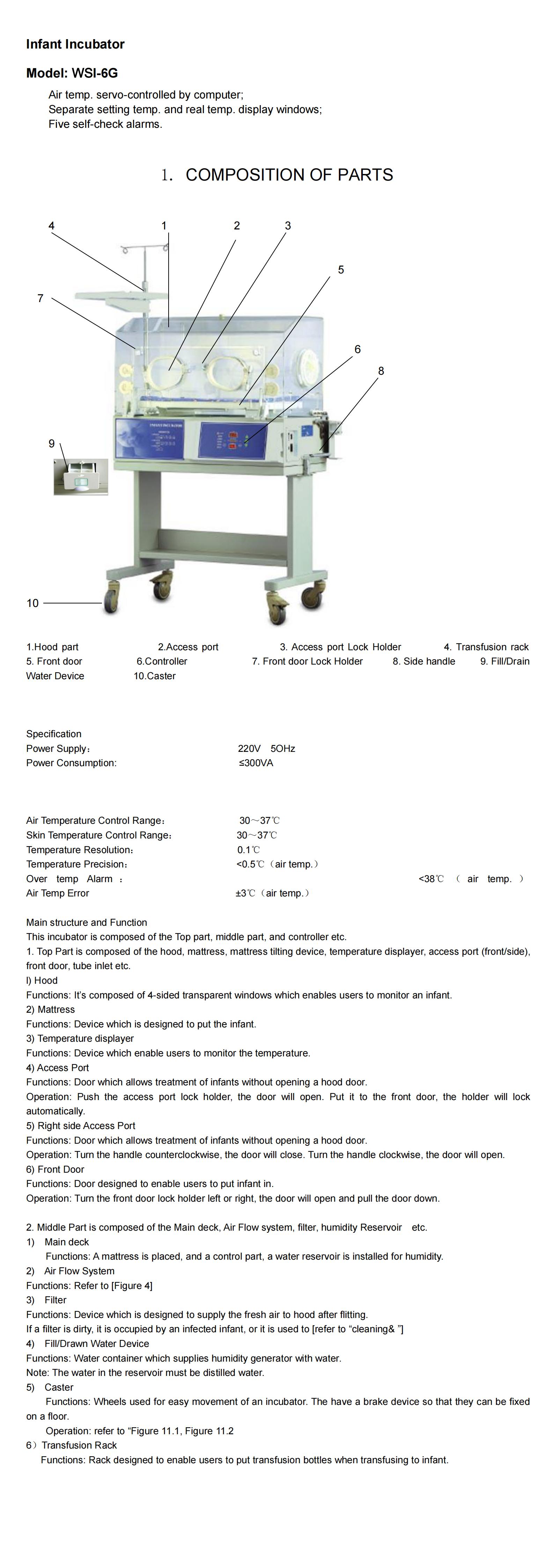

COMPOSITION OF PARTS
1.Hood part 2.Access port 3. Access port Lock Holder 4. Transfusion rack 5. Front door 6.Controller 7. Front door Lock Holder 8. Side handle 9. Fill/Drain Water Device 10.Caster
Specification Power Supply: 220V 5OHz Power Consumption: ≤300VA Air Temperature Control Range： 30～37℃ Skin Temperature Control Range： 30～37℃ Temperature Resolution：0.1℃ Temperature Precision： <0.5℃（air temp.） Over temp Alarm： <38℃（air temp.） Air Temp Error : ±3℃（air temp.）
Main structure and Function This incubator is composed of the Top part, middle part, and controller etc. 1. Top Part is composed of the hood, mattress, mattress tilting device, temperature displayer, access port (front/side), front door, tube inlet etc. l) Hood Functions: It’s composed of 4-sided transparent windows which enables users to monitor an infant. 2) Mattress Functions: Device which is designed to put the infant. 3) Temperature displayer Functions: Device which enable users to monitor the temperature. 4) Access Port Functions: Door which allows treatment of infants without opening a hood door. Operation: Push the access port lock holder, the door will open. Put it to the front door, the holder will lock automatically. 5) Right side Access Port Functions: Door which allows treatment of infants without opening a hood door. Operation: Turn the handle counterclockwise, the door will close. Turn the handle clockwise, the door will open. 6) Front Door Functions: Door designed to enable users to put infant in. Operation: Turn the front door lock holder left or right, the door will open and pull the door down.
2. Middle Part is composed of the Main deck, Air Flow system, filter, humidity Reservoir etc. 1) Main deck Functions: A mattress is placed, and a control part, a water reservoir is installed for humidity. 2) Air Flow System Functions: Refer to [Figure 4] 3) Filter Functions: Device which is designed to supply the fresh air to hood after flitting. If a filter is dirty, it is occupied by an infected infant, or it is used to [refer to “cleaning& ”] 4) Fill/Drawn Water Device Functions: Water container which supplies humidity generator with water. Note: The water in the reservoir must be distilled water. 5) Caster Functions: Wheels used for easy movement of an incubator. The have a brake device so that they can be fixed on a floor. Operation: refer to “Figure 11.1, Figure 11.2 6）Transfusion Rack Functions: Rack designed to enable users to put transfusion bottles when transfusing to infant.
