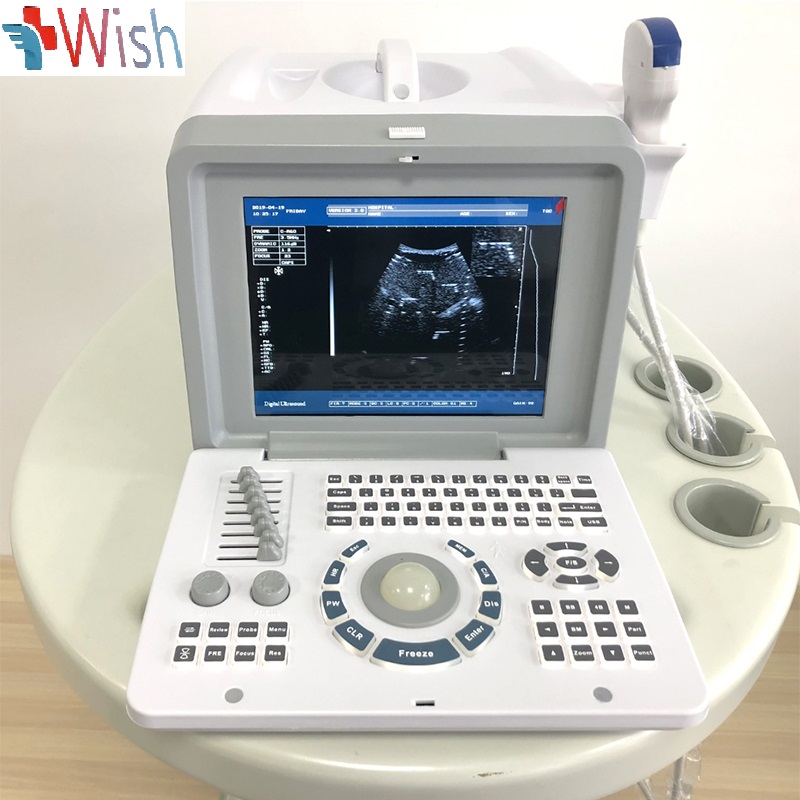

WSB-SS5 Black Ultrasound machine
Specifications
Application: Abdomen, OB/GYN, Small Parts, Veterinary
Style: Portable
Types: Black and White
Standard Configuration:
One host( silicone keyboard)
User Manual

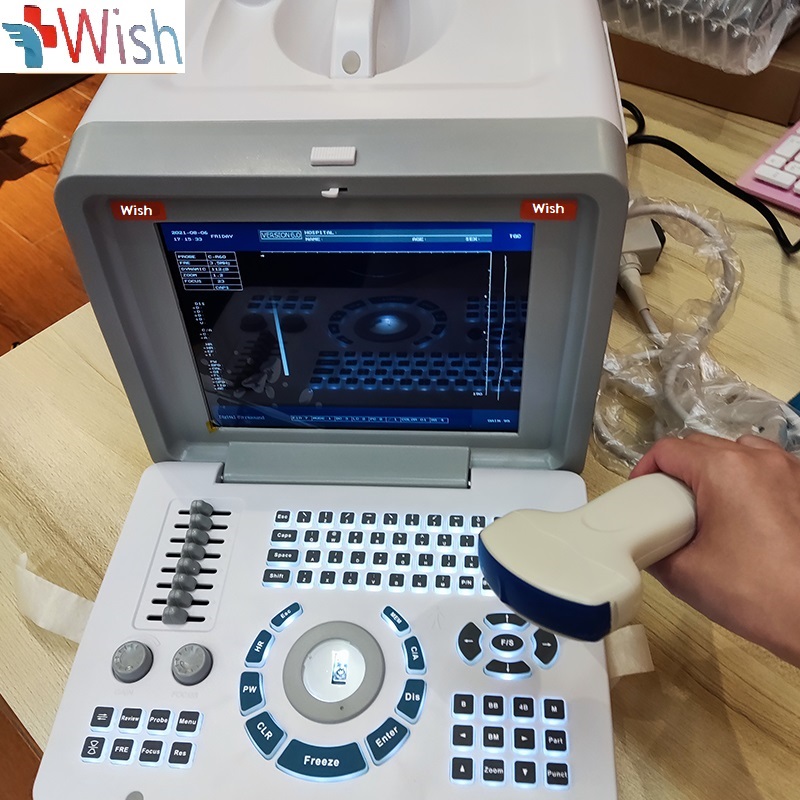

Convex Probe
Feature:
-4D imaging function
-15 inch LED screen, pretty, portable and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-PC based, abundant functions
-Powerful image and report management
-Large volume storage image and cineloop
-DICOM display and transfer(optional)
-Compatible with laser/inkjet printers
-Built-in battery(Work 5 hours)
Specification:
-Monitor: 15 inch LED
-Display mode: B, B+B, B+M, M, 4B, 9B
-Image gray scale: 256 level
-Cine loop: Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M
-Image storage: ＞50,000 frames
-Scan angle: 60-160 degrees, depending on probe
-Scan depth: 20mm～240mm
-Dynamic range: ≥100dB, 4-level adjustable
-Image flip: Up/down, left/right, black/ white, 90/180/270°
-Zoom: Continuously, real-time dynamic PIP
-Focus position: Adjustable-Focal space: Adjustable
-Measurement: Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine
-Software packages: General, OB, GYN, cardiology, urinary, small organ
-Notation: Date, time, name, sex, age, doctor, hospital name, full screen notation
-Body mark: 43 types-Peripheral port: Video, S-video, USB2.0, DICOM3.0, VGA
-Battery volume: 8,000mAh
-Power consumption (MAX): 75VA-Dimension: 35.5*36.6*7.5 CM
-Net Weight: 5kgs
Optional:
Convex, Linear, Trans-vaginal
Micro-convex,Rectal Probe; DICOM3.0; Trolley; Laser Printer
Optional Information
3.5Mhz Convex Probe
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block,
Procedure and Biopsy guidance
6.5Mhz Transvaginal Probe,
Applications: Obstetrics, gynecology
7.5Mhz linear Probe,
Applications: Breast, small parts, nerve, vascular, venous access,
musculoskeletal, biopsy guidance
5Mhz micro-convex probe;
Applications: Abdominal, Urology, vascular，Pediatric cardiology, pediatric abdominal, neonatal heads,Small animal
Trans-Rectal Probe
No Picture
USB connection
Trolley
Suitable for portable and handheld ultrasound model,
Gross Weight: 35kg, Package Size: 87*54*37cm
Printer
Video printer, Mitsubishi P93C

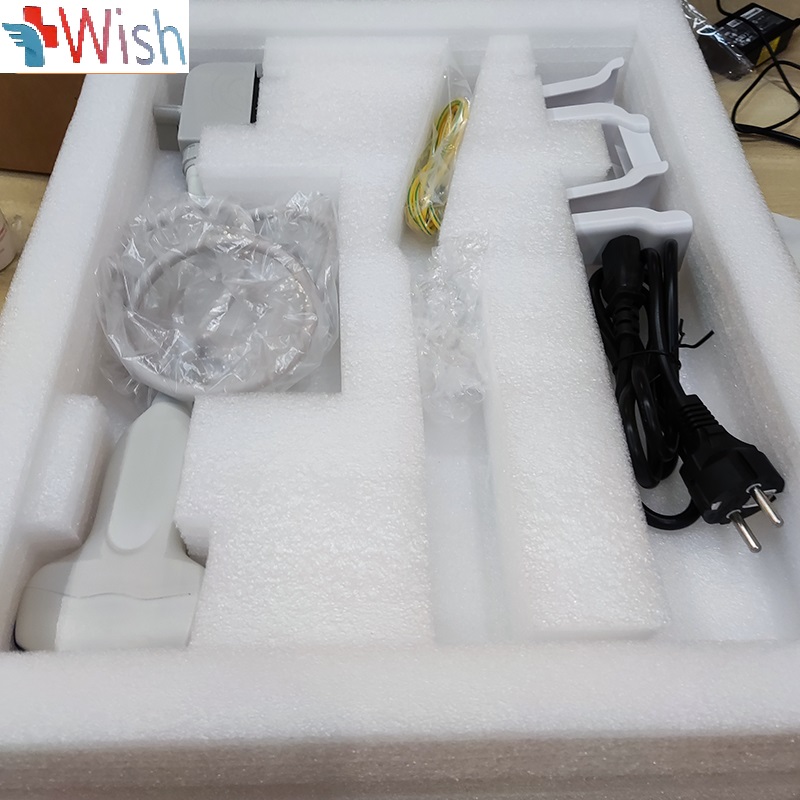

Shipping Information:
G.W: 10kg
Packing Size: 0.5m,0.38m,0.44m
