WSB-C80PLUS 19inch LED Screen Trolley 3D 4D Color Doppler Ultrasound

Service

Prev：WSB-W160 Full digital Ultrasound Scanner with 3.5MHZ convex probe

Next：WSB-C80 15 LED screen Trolley Type 3D Color Doppler Ultrasound Machine

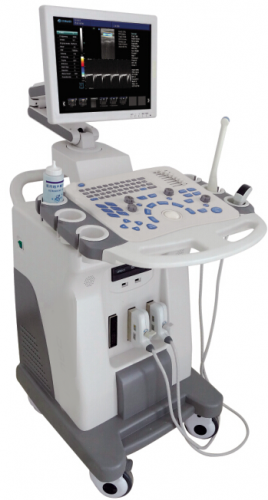

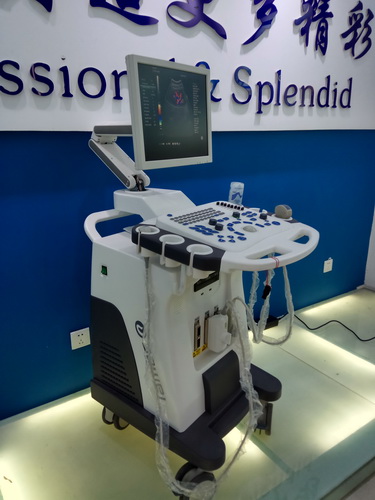

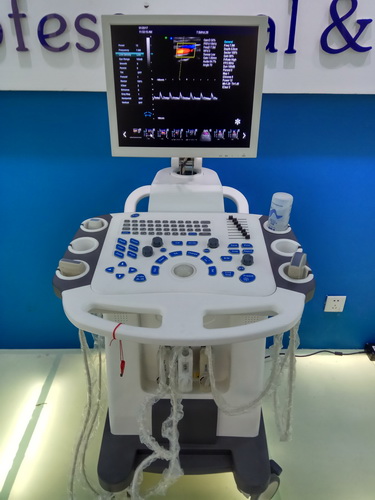

WSB-C80PLUS 19inch LED Screen Trolley 3D 4D Color Doppler Ultrasound

Price USD：

$9,839.00

$12,999.00

Description：

19 inch LED medical display, 4 Probes Connectors, Multi Language(English, French, Spanish, Russian, Arabic, Vietnamese, Portuguess. Two monitor, 19 inch LED medical display, 10inch Touch Screen

Ship Way：

DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs

Item Code：

WSB-C80PLUS

Brand：

WISH MED

Contact WhatsApp

Specifications

Brochures

Video show

WSB-C80PLUS 19inch LED Screen Trolley 3D 4D Color Doppler Ultrasound

Specifications

Application: Abdomen, OB/GYN, Small Parts, MSK, Vascular, Cardiology, Anaesthesia, Emergency, ICU, Breast, Veterinary, 3D, 4DStyle: TrolleyTypes: Color Doppler

Charactor:
19 inch LED medical display, 4 Probes Connectors, Multi Language(English, French, Spanish, Russian, Arabic, Vietnamese, Portuguess.
Two monitor, 19 inch LED medical display, 10inch Touch Screen

Windows 7 embedded operating platform, solid-state hard drive data storage，safe and reliable and boot quickly

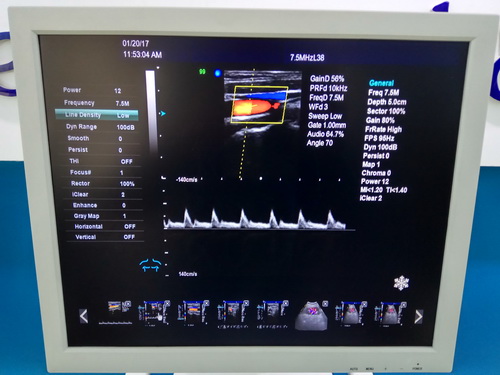

Display	19 inch LED medical display，10 inch touch screen
Probe connector	4
Operation interface	English (more languages as option)
Display mode	B、B+B、4B、B+M、M、C、PW、CW、4D、B/C、B/C/PW、B/PW
Focus	4 segments
Body mark	≥57
Image processing	Up/Down, Left/Right, Angular variation, Reverse
Measurement	Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed.
Application	Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight.
Character display	Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing)
Cine loop	≥ 1200 frames, continuous playback or view one by one.
Storage	Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device
Gray scale	256 levels
Puncture guide	Available
Gravel positioning	Available
Dynamic range	0-270dB
TGC control	8 segments
Pre-processing	Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on.
Post-processing	Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pu lse repetition frequency) and so on.
Blind zone	≤4mm
Max display depth	320mm
Geometric accuracy	horizontal ≤ 5%, vertical ≤ 5%
Resolution	lateral ≤ 2mm, axial ≤ 1mm
External interface	Video, USB, DICOM 3.0
Display magnification	16 kinds
Frame rate	5-1016fps
Scanning range	5% - 100%
Gain adjustment	Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15
Image optimization	6 level adjustable
Smoothing	8 level adjustable
Edge enhancement	8 level adjustable
PRF	16 level adjustable
Gray scale curve	16 level adjustable
Acoustical power	15 level adjustable
Hard Disc Storage	120G

Optional Information

Probes

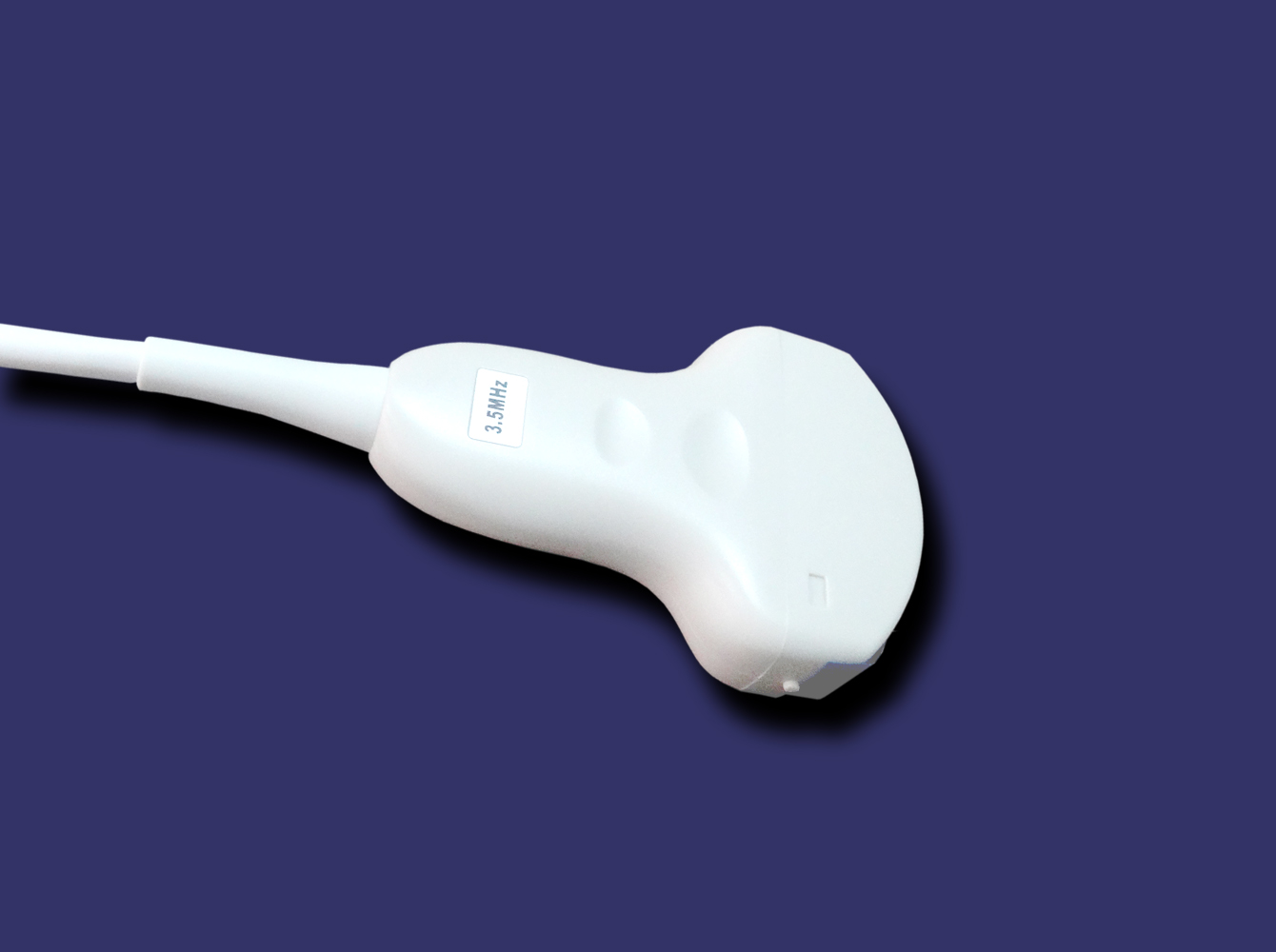

3.5MHZ convex probe:

Frequency: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
Depth: 16 level (126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm)
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block, Procedure and Biopsy guidance

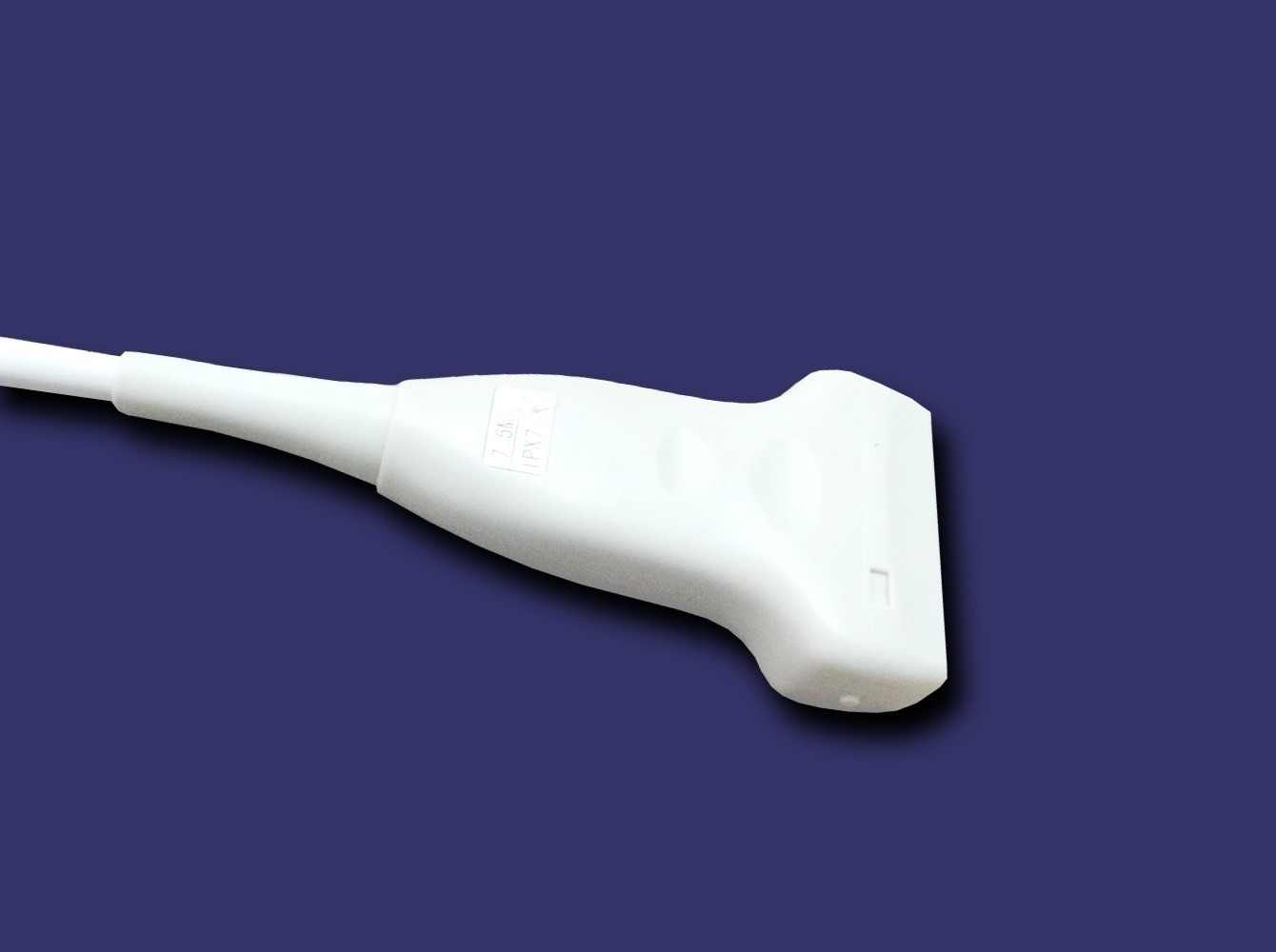

7.5MHZ High frequency Linear Probe

Frequency: 6.0, 6.5, 7.5, 10.0, 12.0Mhz
Depth: 16 level (35,42,49,62,69,76,83,90,97,104mm)
Applications: Breast, small parts, nerve, vascular, venous access, musculoskeletal, biopsy guidance

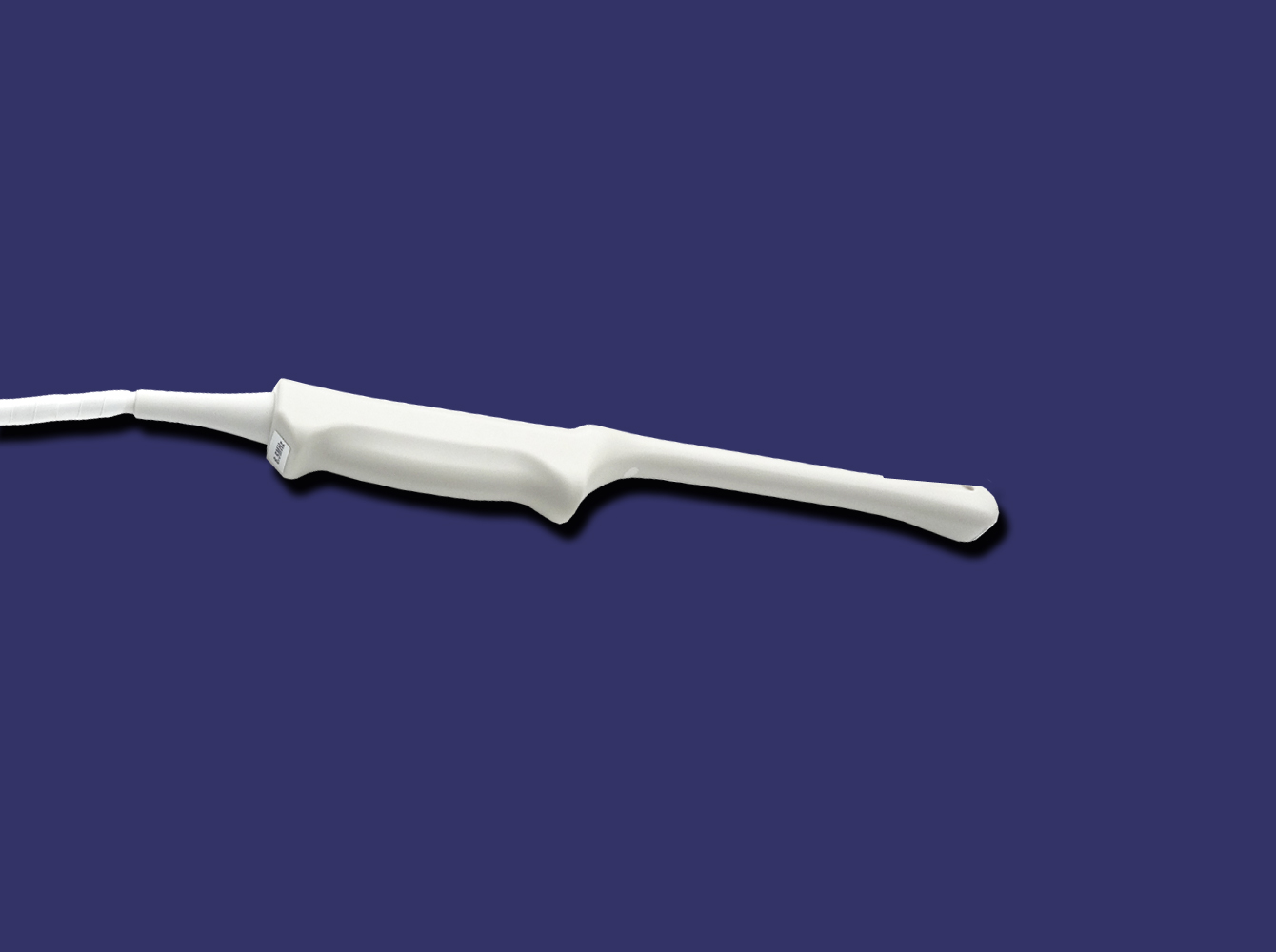

6.5MHZ trans-vaginal Probe

Frequency: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
Depth: 16 level (62,69,76,83,90,97,104,111,125,139mm)
Applications: Obstetrics, gynecology

Micro-convex probe

Frequency: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0 Mhz
Depth: 16 level (62,69,83,97,111,125,139,152,166,180mm)
Applications: Abdominal, Urology, vascular，Pediatric cardiology, pediatric abdominal, neonatal heads,Small animal

3.0MHZ Phased array probe:

Frequency: 2.0, 3.0, 3.5, 4.0, 5.0Mhz
Application: Used for professional cardiac

Rectal Probe
Used for andrology department

4D Volume probe

Frequency:2.0, 3.0, 3.5, 4.0, 5.5Mhz

Printer
Video Printer,
Mitsubishi Brand P93C, Black Video Printer

Package Size: 40*30*25cm
GW: 4kg

Sony Brand UP-X898MD model, Color Video Printer

Package Size: 40*30*25cm
GW: 5kg

B/W Laser Printer,
Color Laser Printer
