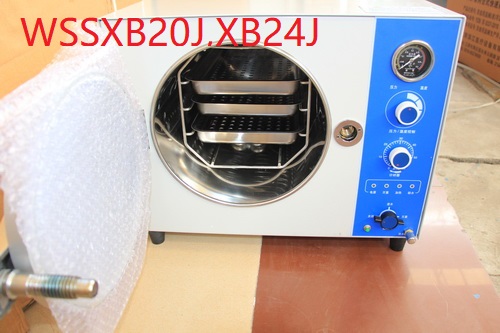

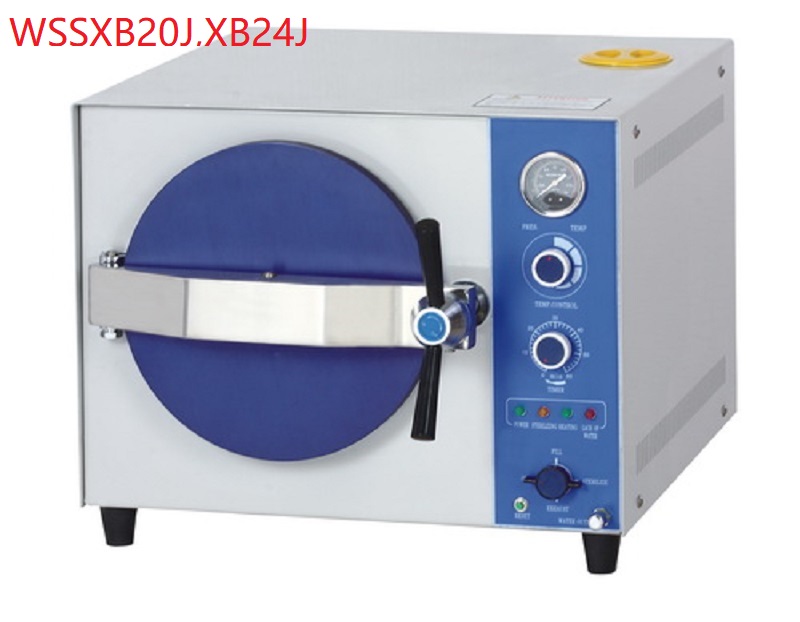

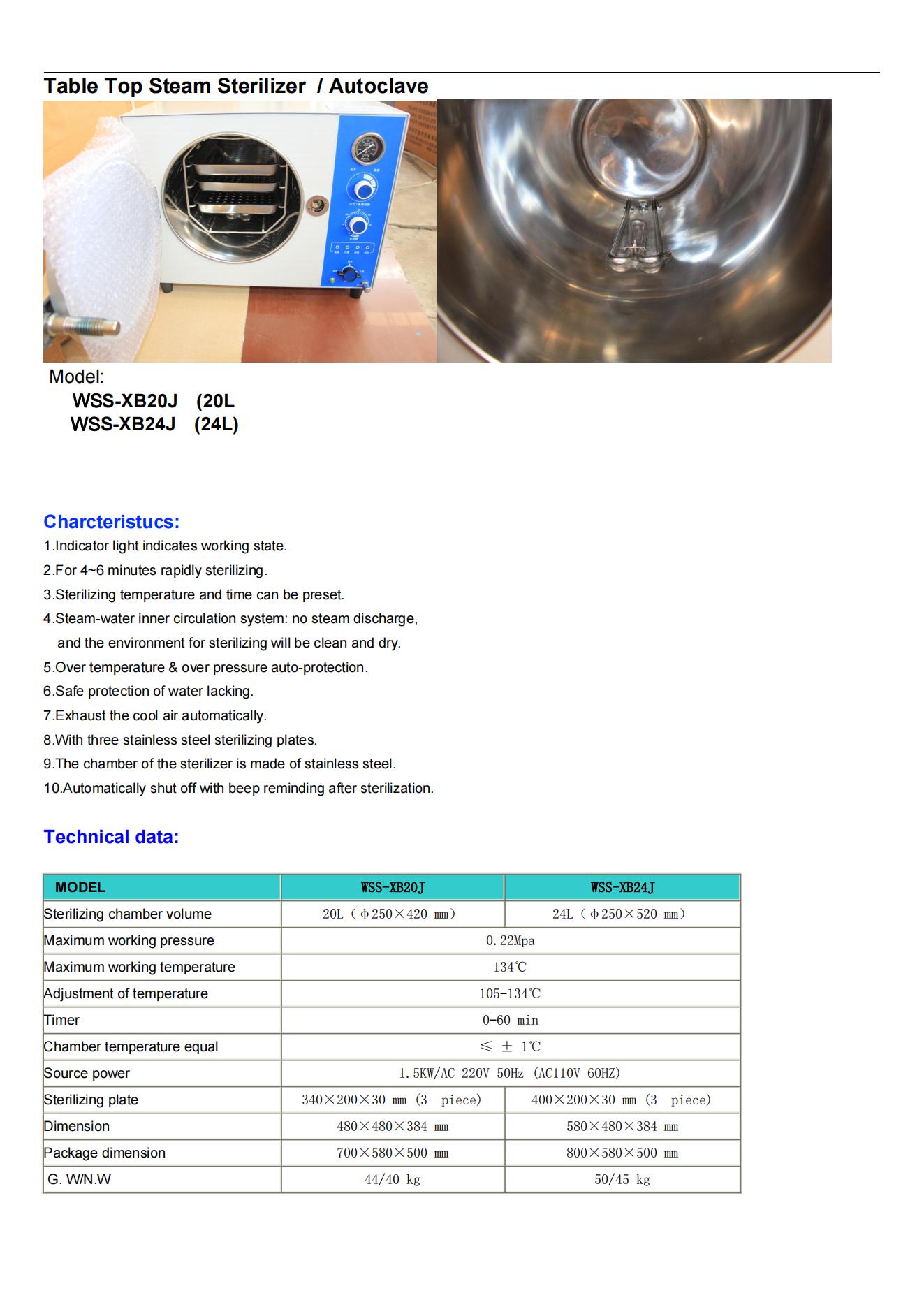

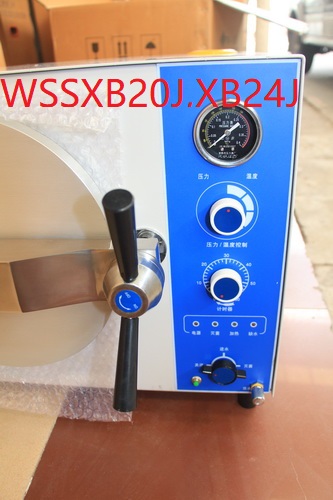

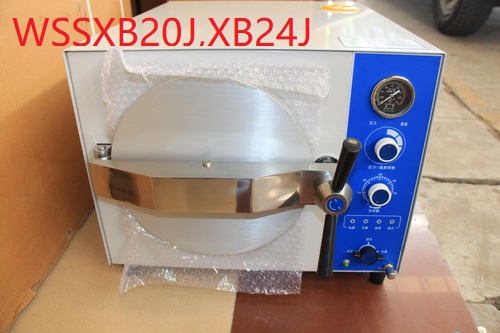

WSSXB20J,XB24J 20L,24L Table Top Desktop Steam Sterilizer
pecifications
Volume: 24L, 20L
Principle: High Pressure Steam
Type: Tabletop/Desktop
harcteristucs:
1.Indicator light indicates working state.
2.For 4~6 minutes rapidly sterilizing.
3.Sterilizing temperature and time can be preset.
4.Steam-water inner circulation system: no steam discharge,
and the environment for sterilizing will be clean and dry.
5.Over temperature & over pressure auto-protection.
6.Safe protection of water lacking.
7.Exhaust the cool air automatically.
8.With three stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
Technical data:
| MODEL | WSS-XB20J | WSS-XB24J |
| Sterilizing chamber volume | 20L（φ250×420 mm） | 24L（φ250×520 mm） |
| Maximum working pressure | 0.22Mpa |
| Maximum working temperature | 134℃ |
| Adjustment of temperature | 105-134℃ |
| Timer | 0-60 min |
| Chamber temperature equal | ≤ ± 1℃ |
| Source power | 1.5KW/AC 220V 50Hz (AC110V 60HZ) |
| Sterilizing plate | 340×200×30 mm (3 piece) | 400×200×30 mm (3 piece) |
| Dimension | 480×480×384 mm | 580×480×384 mm |
| Package dimension | 700×580×500 mm | 800×580×500 mm |
| G. W/N.W | 44/40 kg | 50/45 kg |
