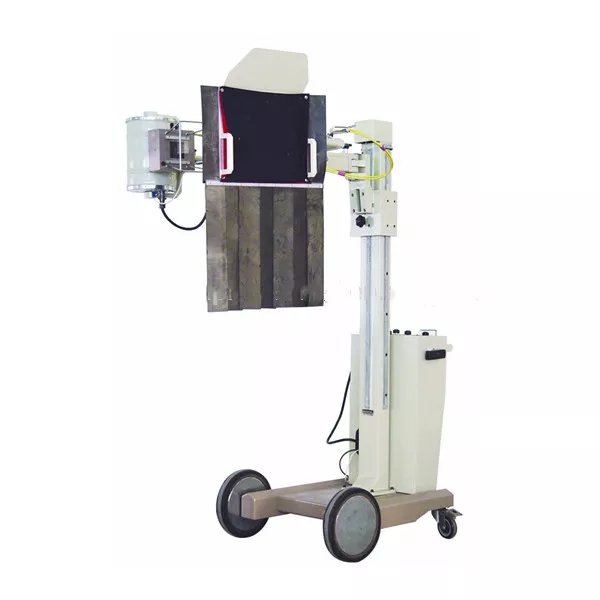

WSX-50II 50mA Mobile X-ray unit for Fluoroscopy and Radiography
Specifications
MA: 50ma
Type: Portable/Movable
Feature:
1.Can be used in ward and emergency treatment room for fluoroscopy and radiography.2.X-ray generator is combined. 3.Single focus, bridge rectification. 4. It is precise, safe, reliable and flexible.
5. Remote control device (control range≥5 m) is used.
Main technical parameter:| X-ray generator | Stationary anode, single focus, and bridge silicon
rectification, The X-ray generator is an oil-immersed self-cooled unit. |
| Max rated capability | Fluoroscopy | 75kVp，3mA |
| Radiography | 90kVp，50mA |
| Power supply | Voltage | 180～240V |
| Frequency | 50Hz |
| Power | not lower than 3.5kVA |
| Resistance | not larger than 1Ω |
Voltage adjustment range
of x-ray tube | 45～90kVp (divided into 10 steps) |
|
| Range of the timer | 0.08～6.3 s |
| Fluorescent screen size | 280mm×350mm |
Distance between the focus
to the screen | 620mm |
Tube head carriage
movement range | (vertical): 950 mm |
| (horizontal): 160 mm |
X-ray tube focus transverse
rotation | ±60° |
| Specification of X-ray tube | XD3-3.5/100,Stationary anode, single focus 2.6mm |
| Transport dimension，Weight | 1175×870×2050(mm),(NET)150kg/(GROSS)244kg |
Shipping Information:
G.W: 230kg
Packing Size: 1.2m,0.9m,2.1m

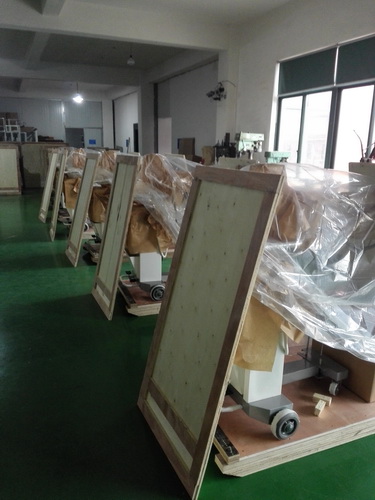

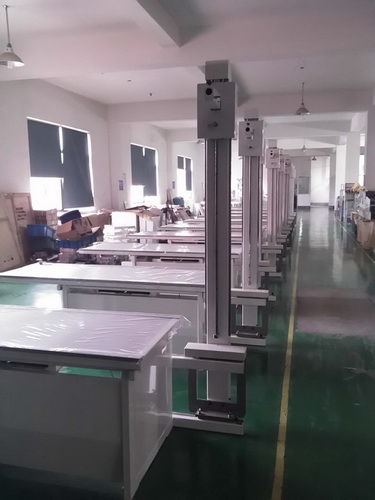

Foctory Show
