WSS-900 4.3”color LCD screen Infusion Pump with remote control
Price USD:
$359.00
$499.00
comment:0
Description: 1. 4.3” color TFT LCD screen (LED backlight), with resolution 272×480 2. Three working modes: Rate/Time/Volume mode 3. Drug library with 210 kinds of medicine
Ship Way: DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code: WSS-900
Brand: WISH MED
Sold: 565
Specifications
Video show
Brochures
Accessories
Review(0)

WSS-900 4.3”color LCD screen Infusion Pump with remote control


Specifications

Features:

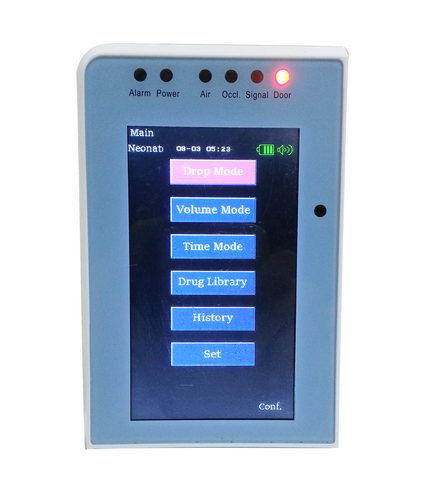

1. 4.3” color TFT LCD screen (LED backlight), with resolution 272×480
2. Three working modes: Rate/Time/Volume mode
3. Drug library with 210 kinds of medicine
4. Storage 1500 history records
5. Heating function, suitable for infusing in winter or there is requirement for the fluid medication temperature
6. Support multi language display
7. A variety of visible and audible alarm, make infusion more safe

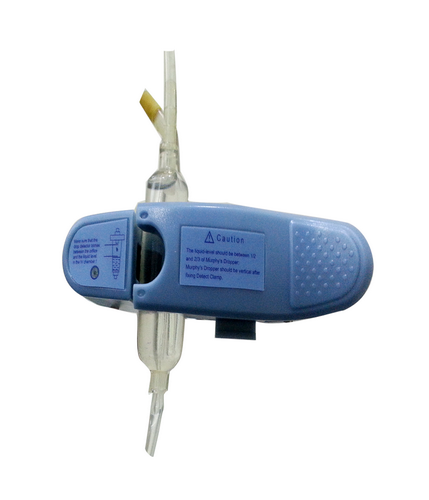

Standard:Drug library, History record, Heating function, Drip detector ,Remote control

Optional:SpO2,NIBP


Why we add NIBP &SpO2 to an infusion pump?
NIBP & SpO2 are the most frequently used vital sign parameters, we   make them work as one, to help doctors reduce cost and save space   which is already very limited in the hospital room.


Technical Specification:

Infusion rate range
Adjustable drop rate range: 1 /min~400 drops/min
                          (step: 1 drop /min)
Adjustable flow rate range: 1ml/h~1200ml/h
                         (step 0.1ml/h)
Purge rate: 800ml/h
KVO rate: 1ml/h (less than 100ml/h)
          2ml/h (100~300ml/h)
          3ml/h (greater than 300ml/h)
Infusion volume range: 1ml~9999.9ml (step: 0.1 ml)
Maximum accumulated volume: 9999.9ml (step: 0.1 ml)
Infusion Time range: 1min~9999min (step: 1 min)

Infusion accuracy: Within ±3% (using calibrated high quality IV set)
                   Mechanical precision: within ±2%

Occlusion alarm threshold:
         High: 800 mmHg ± 200 mmHg (106.7kPa±26.7kPa)
Medium: 500 mmHg ± 100 mmHg (66.7kPa±13.3kPa)
Low: 300 mmHg ± 100 mmHg (40.7kPa±13.3kPa)
Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.

NIBP
Range
Average deviation: ≤ ±5mmHg
Standard deviation:   ≤ 8mmHg
Adult
         SYS: 40mmHg~280mmHg
         MEAN: 20mmHg~240mmHg
         DIA: 10mmHg~220mmHg
Pediatric
         SYS: 40mmHg~220mmHg
         MEAN: 20mmHg~170mmHg
         DIA: 10mmHg~160mmHg
Neonate
         SYS: 40mmHg~135mmHg
         MEAN: 20mmHg~110mmHg
         DIA: 10mmHg~100mmHg
Static pressure
         Range: 0mmHg~300mmHg
         Deviation: 3mmHg

Resolution: 1mmHg

NIBP measurement mode
Manual
Cycle (automatic):
Optional interval: 1min, 2min, 3min,4min, 5min, 10min,
15min, 30min, 60min, 90min
Fast: continuous NIBP measurement, interval is 5min

NIBP alarm
High pressure alarm: >90mmHg-160mmHg
Low pressure alarm: <50mmHg-90mmHg
Accuracy: ±5%

Overpressure protection
Adult: 280 mmHg ±10 mmHg
Pediatric: 237 mmHg ±3 mmHg
Neonate: 147 mmHg ±3 mmHg

SpO2
Range: 0%~100%
Resolution: 1%
Accuracy: 70% to 100%, precision is 2%
          0% to 69%, undefined

SpO2 alarm
Upper limit: 100%
Lower limit: 90%
Alarm value accuracy: 3%
Alarm time accuracy: 2s

Pulse rate
Range: 20bpm~300bpm
Resolution: 1bpm
Accuracy: 3bpm

Pulse rate alarm
Upper limit: 120bpm
Lower limit: 50bpm (default)
Alarm value accuracy: 5%
Alarm time accuracy: 2s

NIBP Cuff requirement
Human body contact materials: Waterproof cloth
Size: 515mm(L)×145mm(W), allowed deviation: ±5%

SpO2 sensor
Type: Finger clip type
Wire length: 3000mm, allowed deviation: ±5%
Human body contact materials: Silicone

Size: 188 mm(L)×198 mm(W)×228 mm(H)
Net weight: 2.5kg


Shipping Information:

G.W: 4kg

Packing Size: 0.3m,0.3m,0.4m

More product details:



Product manual:


WSS-900.pdf


WISH MED Product Catalog

WSS-900 4.3”color LCD screen Infusion Pump with remote control_00.jpg

WISH MED Product Price Catalog
WISH MED Product Price Catalog2021.pdf
49.88MBDownload
