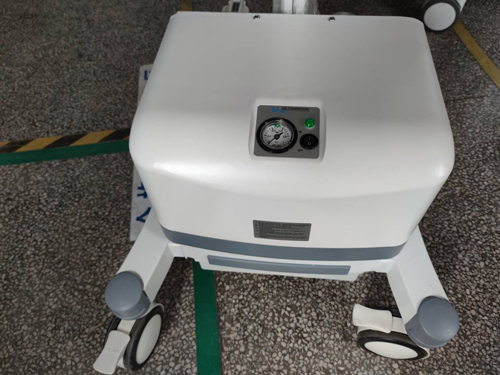

WSV-PA900B2 High quality trolly Ventilator with Air compressor

Price USD：
$8,999.00
$12,999.00
Description： Warranty:12 months CE, ISO 13485 and Rohs certificates "Microprocessor controlled, Pneumatically driven electronically controlled" 10.4” TFT display screen for ventilation parameters Humidifier with temperature adjustment
Ship Way： DHL, UPS, federal, air freight to airport, sea freight, air freight forwarding help you clear customs
Item Code： WSV-PA900B2
Brand： WISH MED
Sold： 689
Contact WhatsApp
Specifications
Brochures
Video show

WSV-PA900B2 High quality trolly Ventilator with Air compressor


Main technical specifications:
Breathing Mode: A/C,SIPPV(VCV),IPPV(VCV),SIMV,PSIMV,CPAP,PCV,PEEP,SIGN,SPONT,MANUAL
Tidal Volume: 0~2000ml
I/E Ratio: 4:1 ~ 1:4
Respiration Frequency : 1~99 bpm;
IMV Frequency : 1~20 bpm
Lung compliance: ≤30 mL / kPa
Oxygen Concentration: 21%~100%
Maximum Minute ventilation: ≥18L / min

Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0 ~ 1.0 kPa
Ptr: -1.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa
Trigger Method: Pressure Trigger, Volume Trigger
Control Method: Pressure Control,   Volume Control

"Ventilation monitoring: "
Tidal volume,Minute ventilation,Frequency, Airway Pressure, I/E, inspiration time, PEEP, FiO2, PCV,PSV
Waveform of time-airway Pressure and so on.

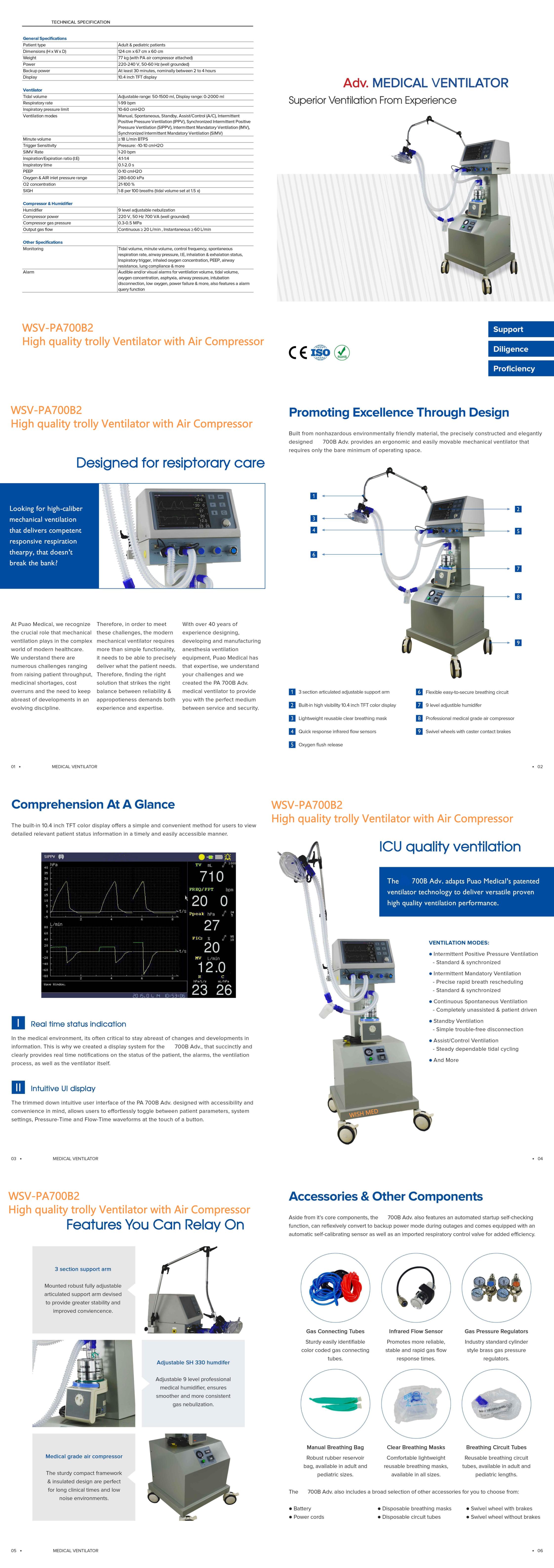

WISH MED Product Catalog

WSV-PA900B2 High quality trolly Ventilator with Air compressor_00.jpg
WISH CARE MEDICAL CATALOG
2023-Wish Care Medical Catalogue.pdf
8.68MBDownload
