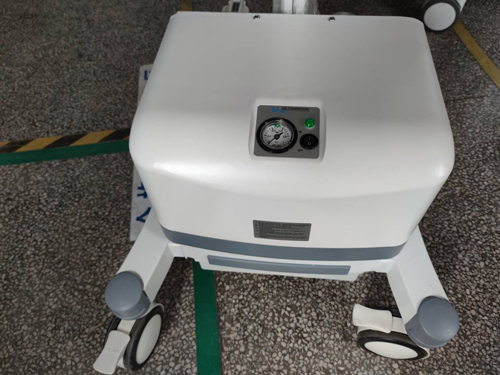

WSV-PA700B2 High quality trolly Ventilator with Air Compressor
Main technical specifications:
Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT. MANUAL
Tidal Volume: 0~2000ml
I/E Ratio: 4:1 ~ 1:4
Respiration Frequency : 1~99 bpm;
IMV Frequency: 1~20 bpm
Lung compliance: ≤30 mL / kPa
Oxygen Concentration: 21%~100%
Maximum Minute ventilation: ≥18L / min
Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0 ~ 1.0 kPa
Ptr: -1.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa
Trigger Method: Pressure Trigger
Control Method: Pressure Control
"Ventilation monitoring: "
Tidal volume,Minute ventilation,Frequency,Airway Pressure,I/E,inspiration time,PEEP,FiO2,
Waveform of time-airway Pressure and so on.
