WSD-AED7000 Portable Biphasic AED Defibrillator
Specifications
Function: With AED Function
Specifications:
1.three-step defibrillation process
2.two-button operation
3.extensive voice and visual prompts for the operator
4.biphasic energy output
5.lock-out protection to prevent inadvertent defibrillation
Battery:
Category Specification
Part No CR123A-4x2
Non-rechargeable 12V d.c. 2.8Ah
Capacity 100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life (25℃±15℃) 5 years
Physical:
Category Specification
Dimensions 303 x 216 x 89 mm
Weight 2.0 kg
Operating Temperature 0℃ to 40℃
Operating Humidity Relative humidity between 30% and 95% (non-condensing)
Storage Temperature(without battery) -20℃ to 55℃
Storage Humidity(without battery) Up to 93% (non-condensing)
Electrical Isolation:
Category Specification
Power Unit operates on internal battery only
External Electrical No external devices are attached to the unit
Risk Current Category Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)

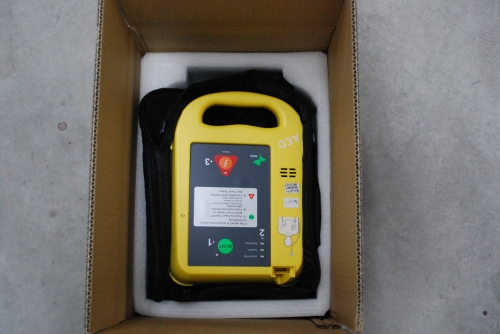

Shipping Information:
G.W: 3kg
Packing Size: 0.3m,0.22m,0.1m
