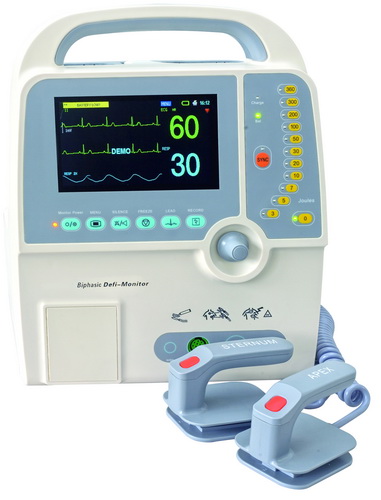

WSD-8000D Biphasic Defi-monitor Defibrillator Monitor

Physical characteristics:
Main unit: Portable
Dimensions:L320xW205xH410
Weight:9.5kg

Technical specifications
DEFIBRILLATOR.
(1) Defibrillator type Manual, Synchronized, Asynchronized,
(2) Energy accuracy ∠+1%
(3)   Energy selection   0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)
(4) Charging time     Maximum 10 seconds to 360 Joules
(5)   Standard Adult/Pediatric Paddles   Reusable external adult   paddles (pediatric paddles integrated)
.Power requirements.
(a) AC Power supply 100V~240V,50Hz/60 Hz
    (b) Vehicle Voltage(Option)             DC 12V
Internal Battery Backup
(1) Battery type     Rechargeable lead-acid battery (12V 2.0Ah   X2)
(2) Charging time    Time-Minimum of 4 hours for full charging
(3) Battery charging      During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication      Red LED
(5) Battery Capacity        100% of the battery will provide 120-min monitoring; and 30 discharges at 360 joules.
Display
-LCD Dimensions 7-inch
-Type High resolution true-color graphic
-Resolution 480X234
ECG
ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6
S-T segment analysis: -2.0～2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance

Standard parameter & configuration
ECG/ RESP/DEFIBRILLATOR

Optional parameter
Recorder, Li-ion battery (11.1V 4Ah   X2)
